Metso / Tampella / Valmet Pressure Screen Basket – Ø1300 / 1200 × 910 mm – Slot 0.30 mm

    Print this page
  • Product ID: VAK11401
  • Name: Metso / Tampella / Valmet Pressure Screen Basket – Ø1300 / 1200 × 910 mm – Slot 0.30 mm

Product title

Metso / Tampella / Valmet TL340 Pressure Screen Basket – Ø1300/1200 × 910 mm – Slot 0.30 mm – AISI 316/316L

Product description

Metso / Tampella / Valmet TL340 Pressure Screen Basket

Heavy-duty profiled slotted pressure screen basket suitable for Tampella / Valmet TL340 pressure screens, used in pulp and stock preparation applications in the paper and board industry.

The basket originates from the spare parts stock of a Finnish board mill.

The basket is manufactured from acid-resistant stainless steel, AISI 316 / 316L, and features a 0.30 mm profiled slot opening.

The TL340 pressure screen was widely used in stock preparation and paper/board machine approach flow applications. Depending on the application and required screening efficiency, TL340 screen baskets were supplied with different slot sizes.

Technical Data

Description Specification
Equipment Pressure screen basket
Suitable for Tampella / Valmet TL340 pressure screen
Application Pulp and stock preparation / pressure screening

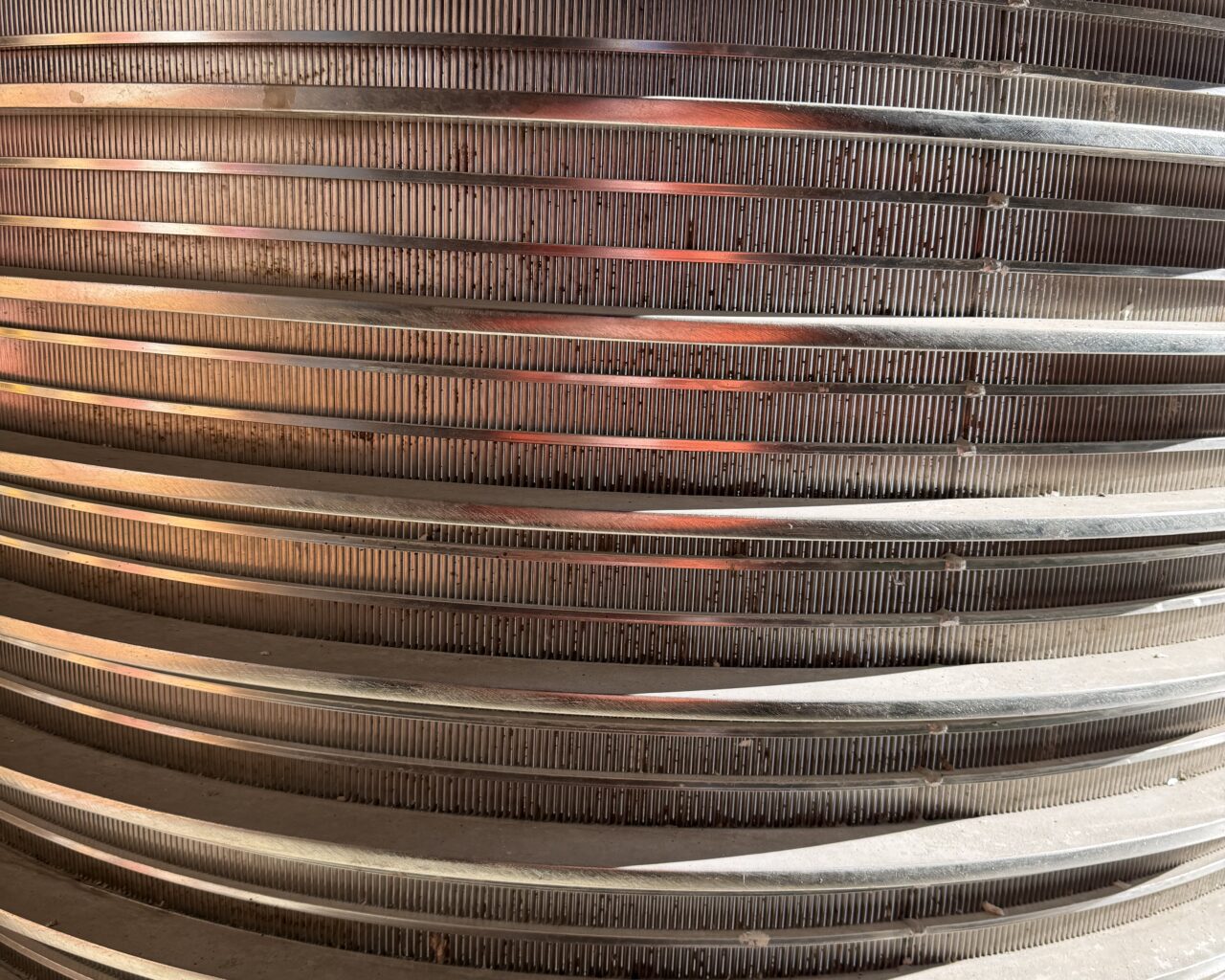

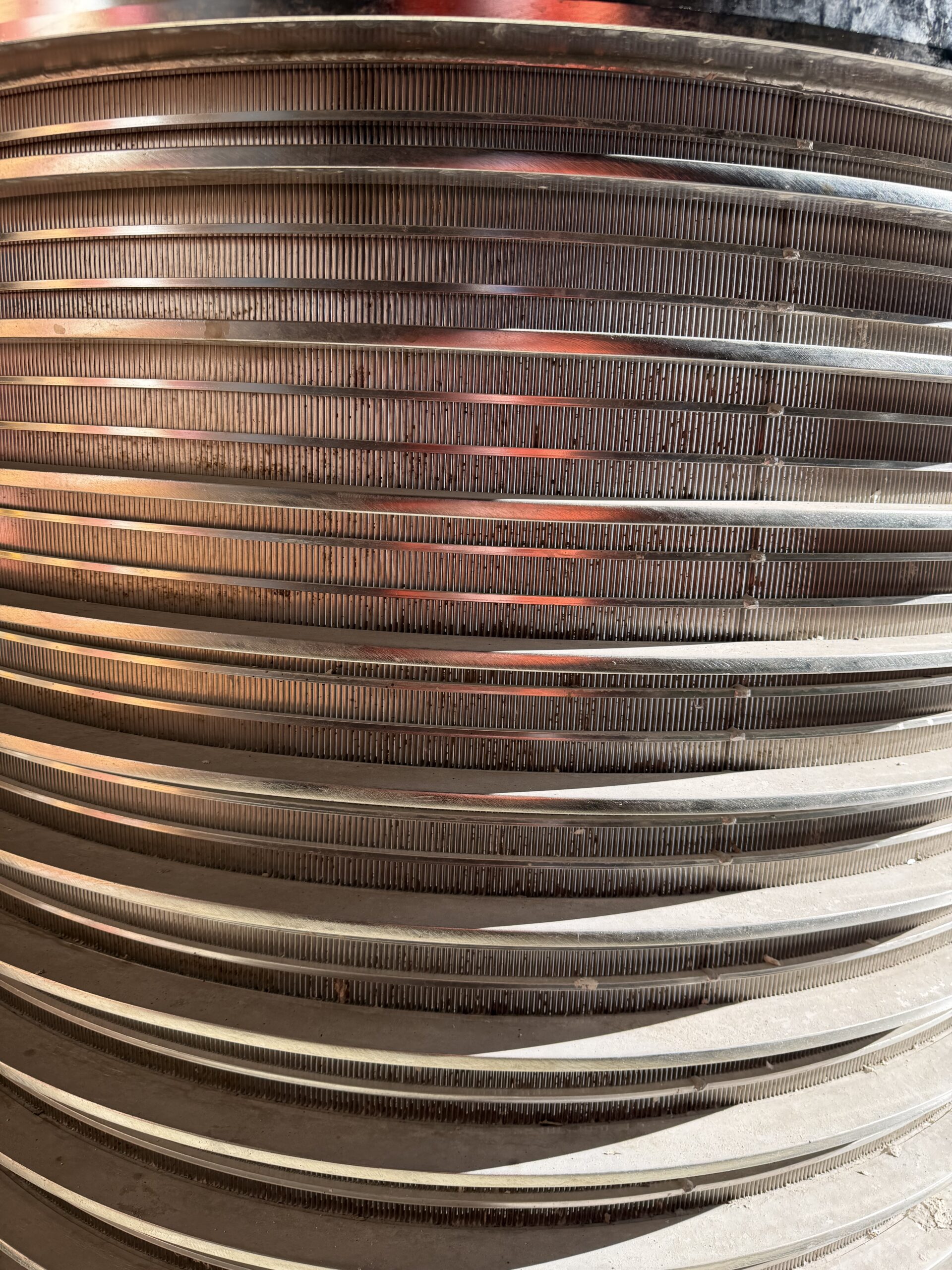

Construction Profiled slotted screen basket
Slot width 0.30 mm
Material Acid-resistant stainless steel, AISI 316 / 316L
Overall height 910 mm
Outside diameter 1,300 mm
Inside diameter 1,200 mm
Top flange / rim Approx. 45 mm
Bottom flange / rim Approx. 35 mm

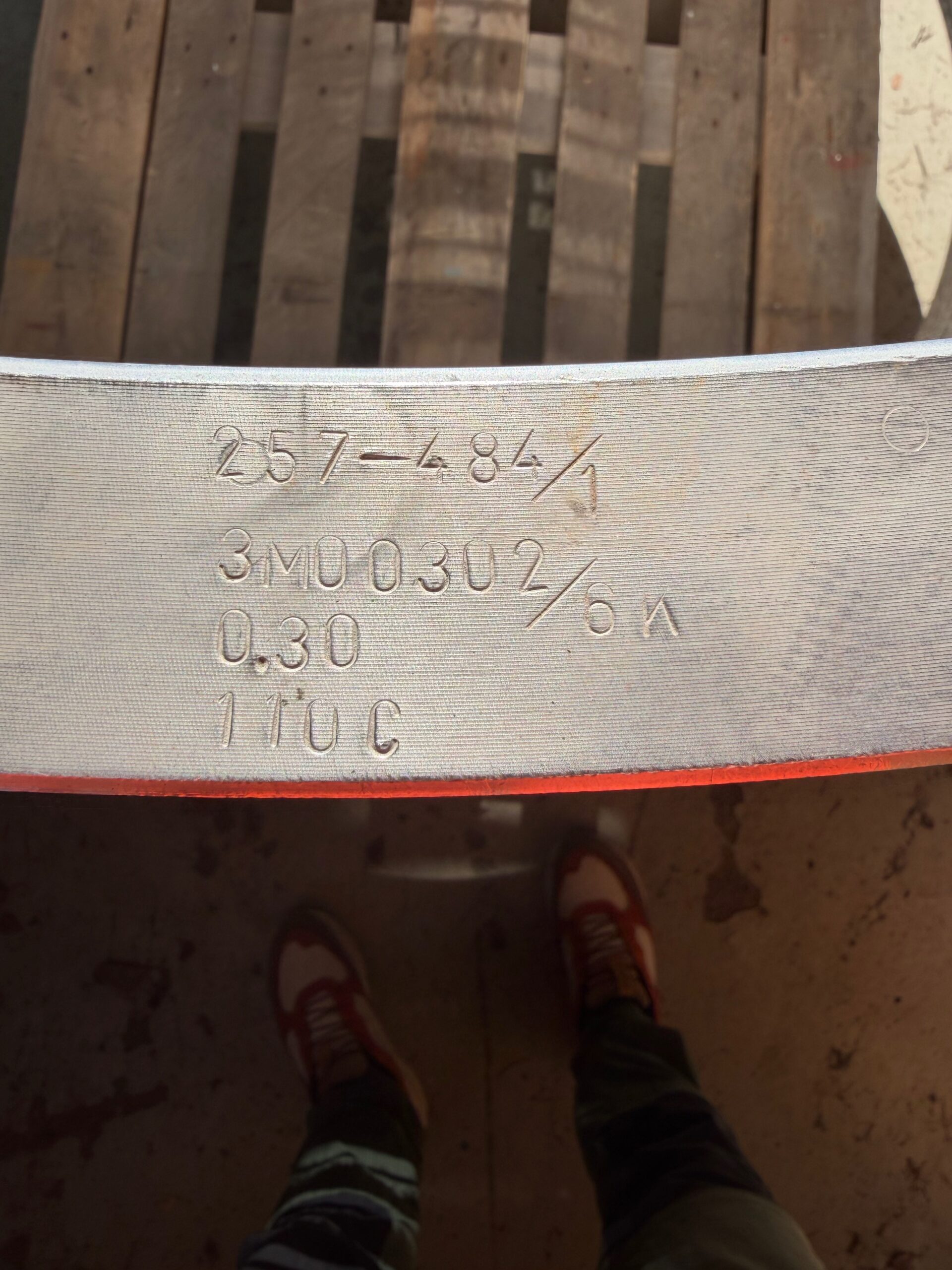

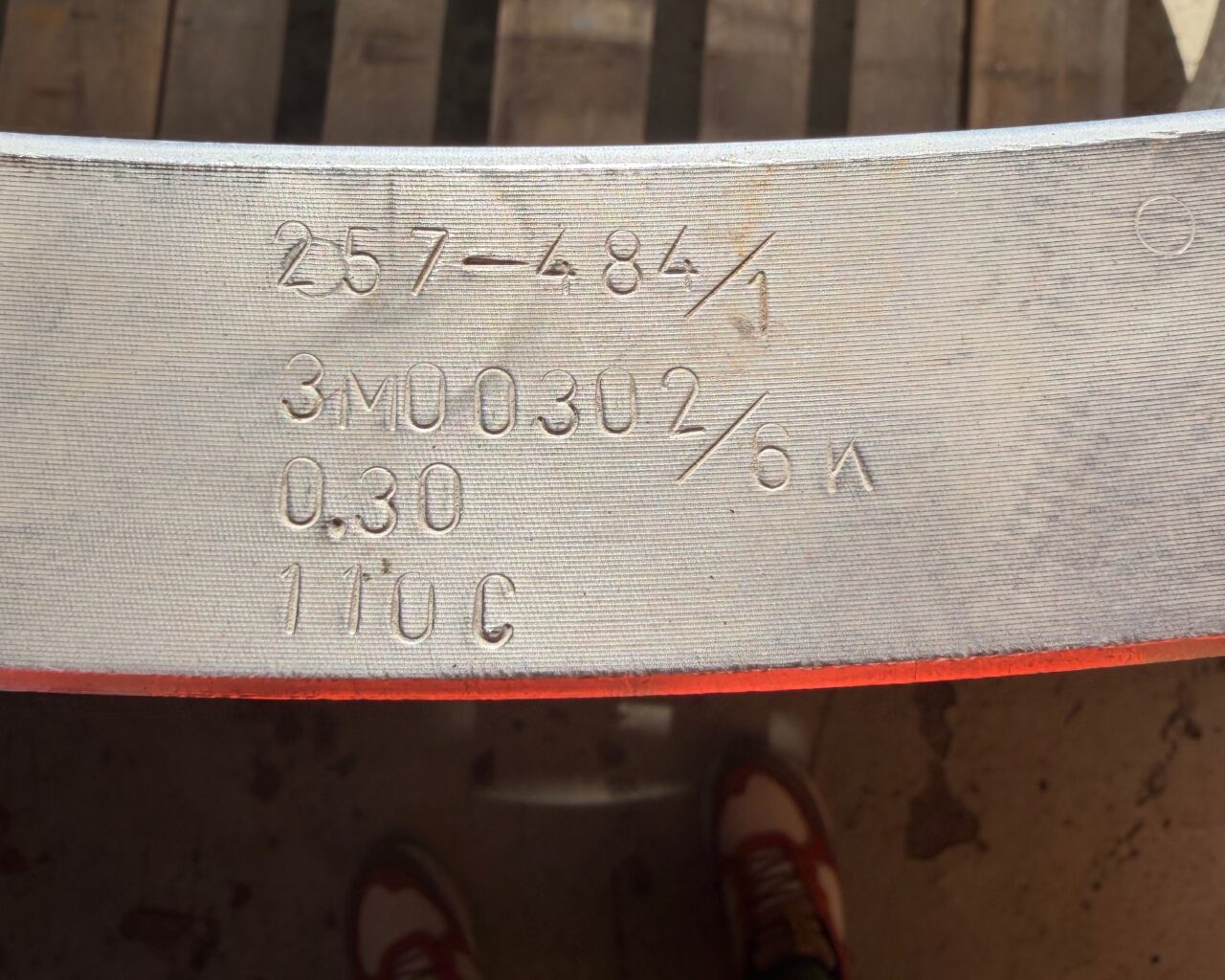

Identification marking 257-484/1
Additional marking 3M00302/6A
Other marking 110 C
Gross weight Approx. 340 kg including EUR pallet
Origin Spare parts stock of a Finnish board mill
Availability Immediately available
Location Varaoke warehouse, Finland

Additional information

The basket has been stored as a spare part and is available for inspection at Varaoke’s warehouse in Finland.

Please compare the dimensions and identification markings with your existing TL340 screen basket when making an inquiry. Additional photographs and measurements are available upon request.
