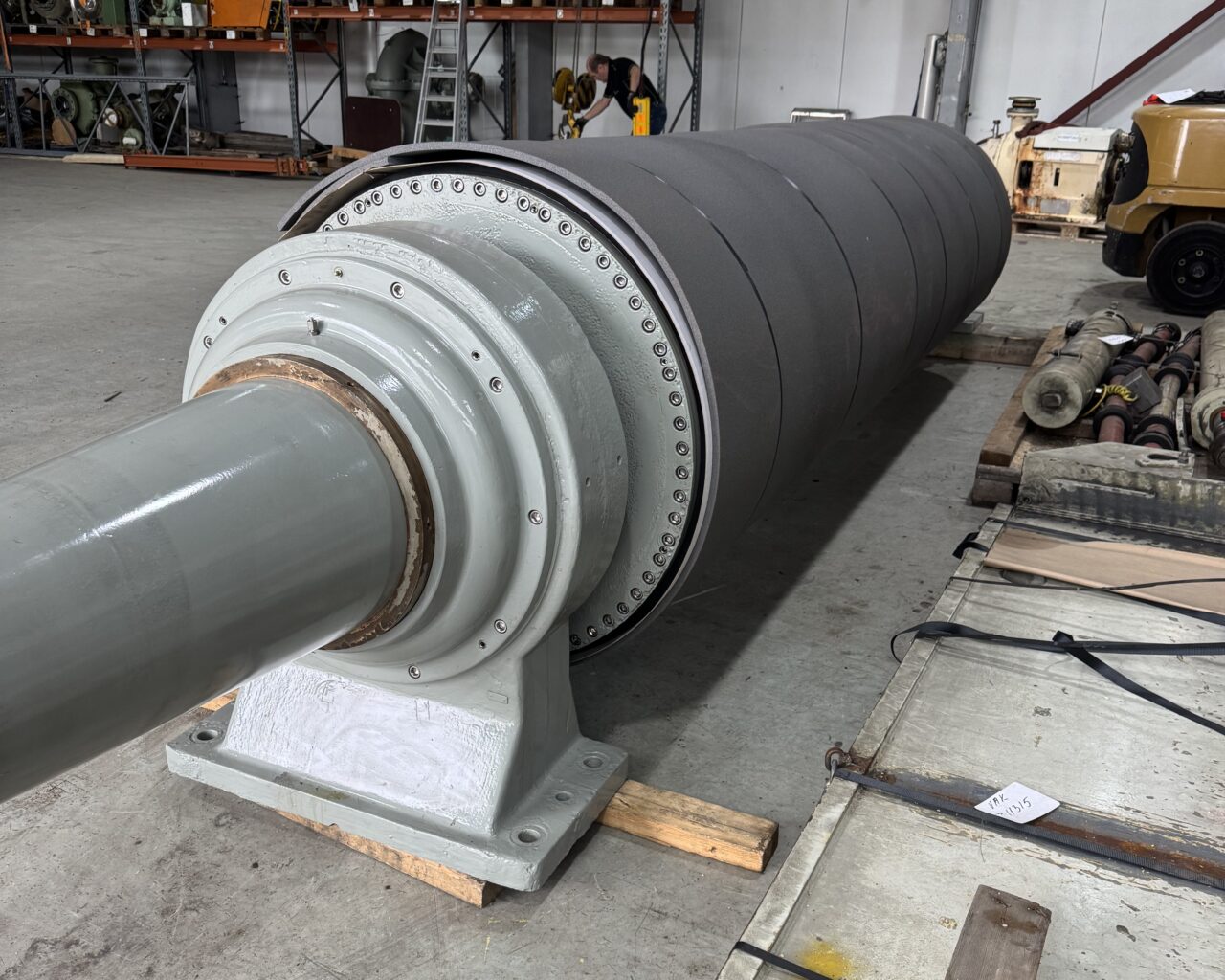

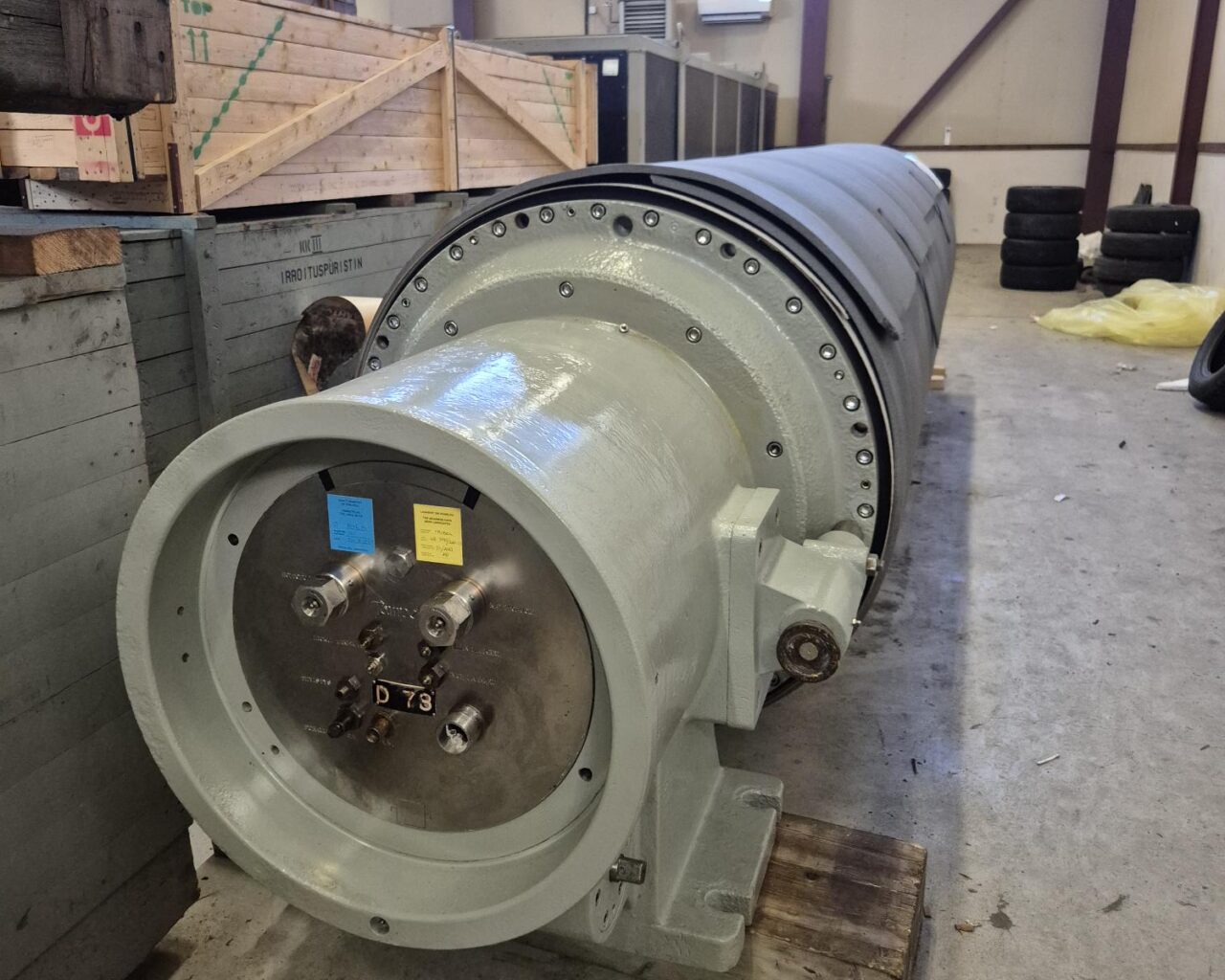

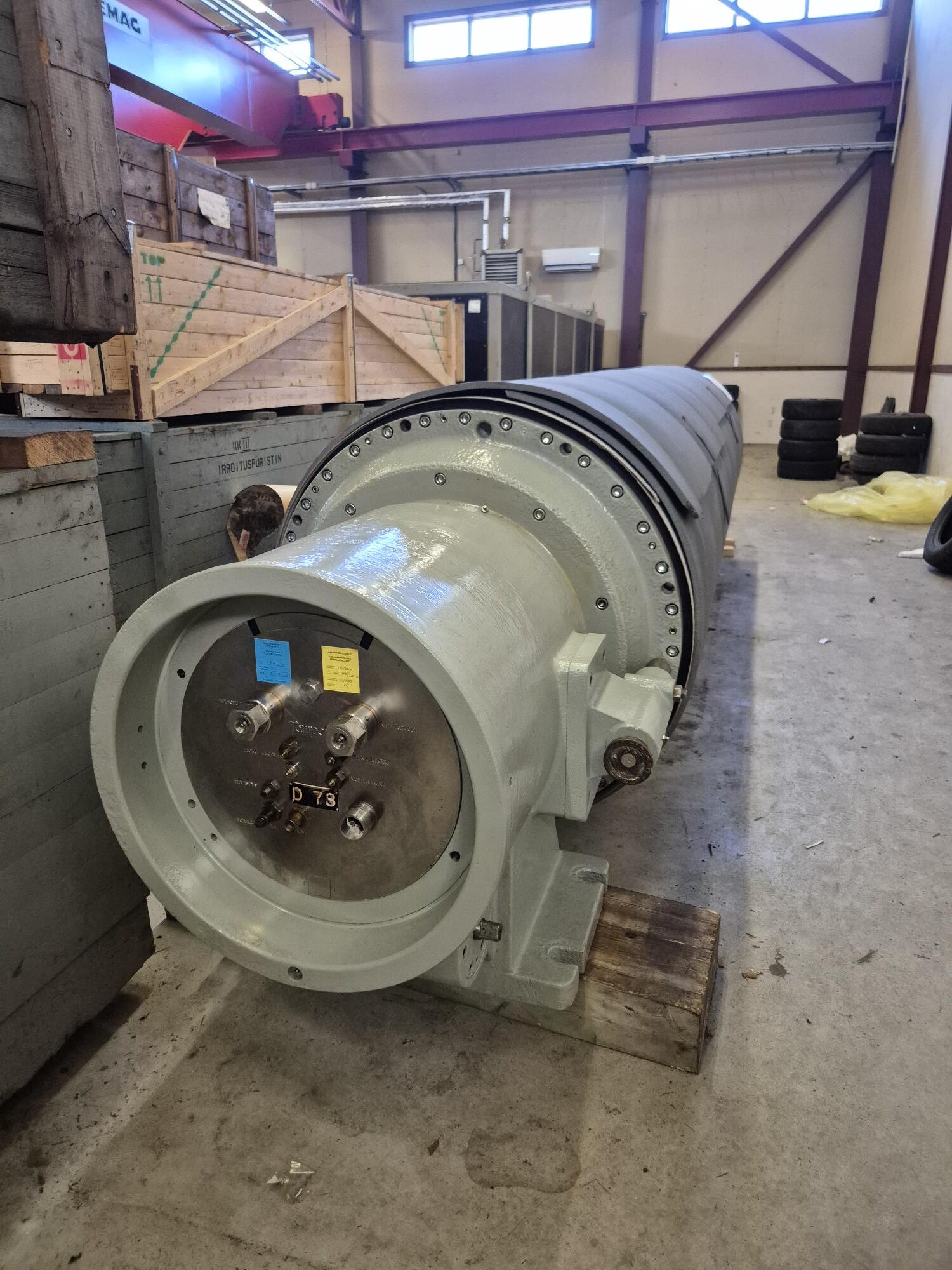

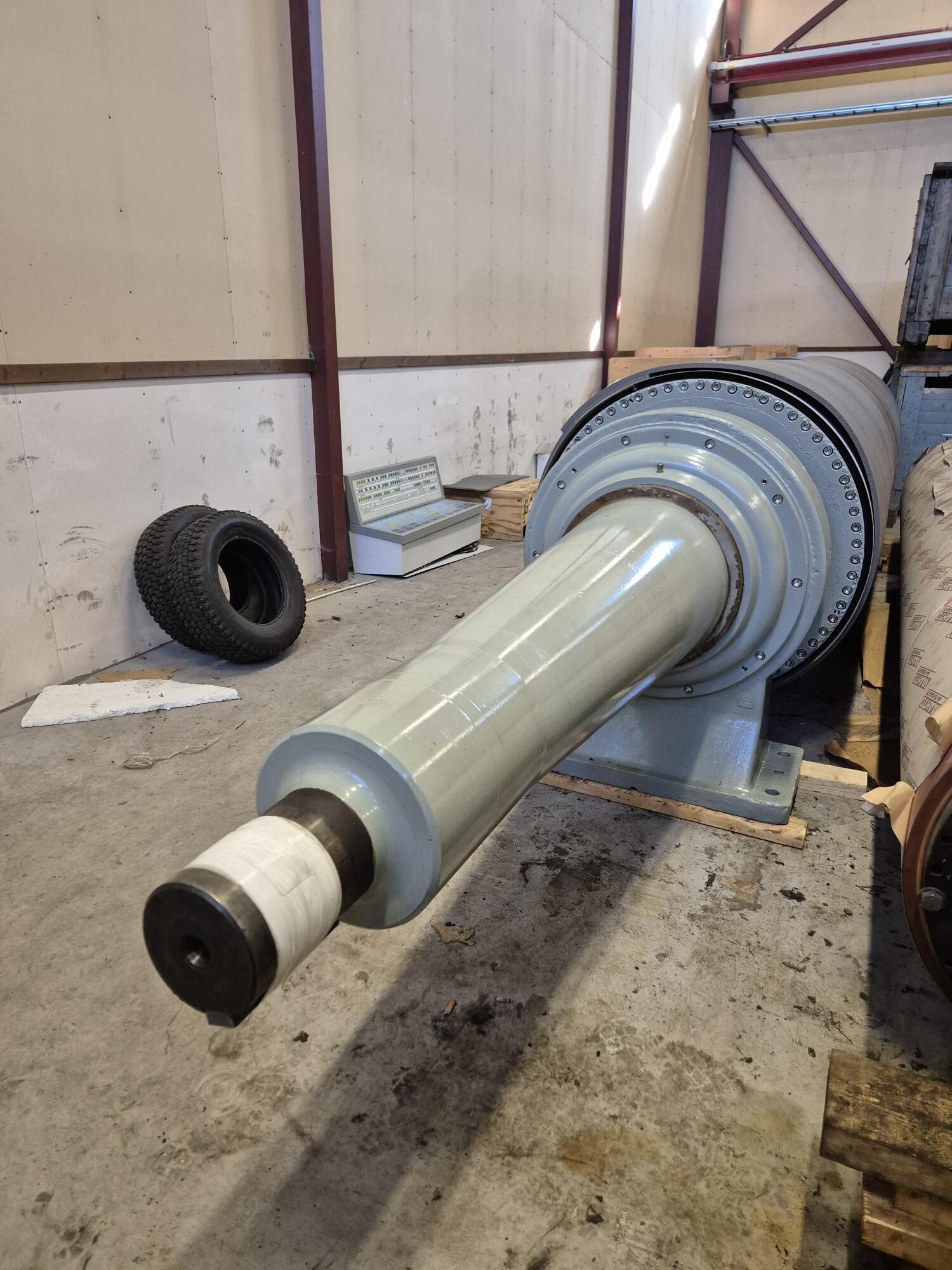

VALMET Suction roll for Board machine suction face max. 3700 mm min 3200 mm. Full overhauled in Valmet roll service

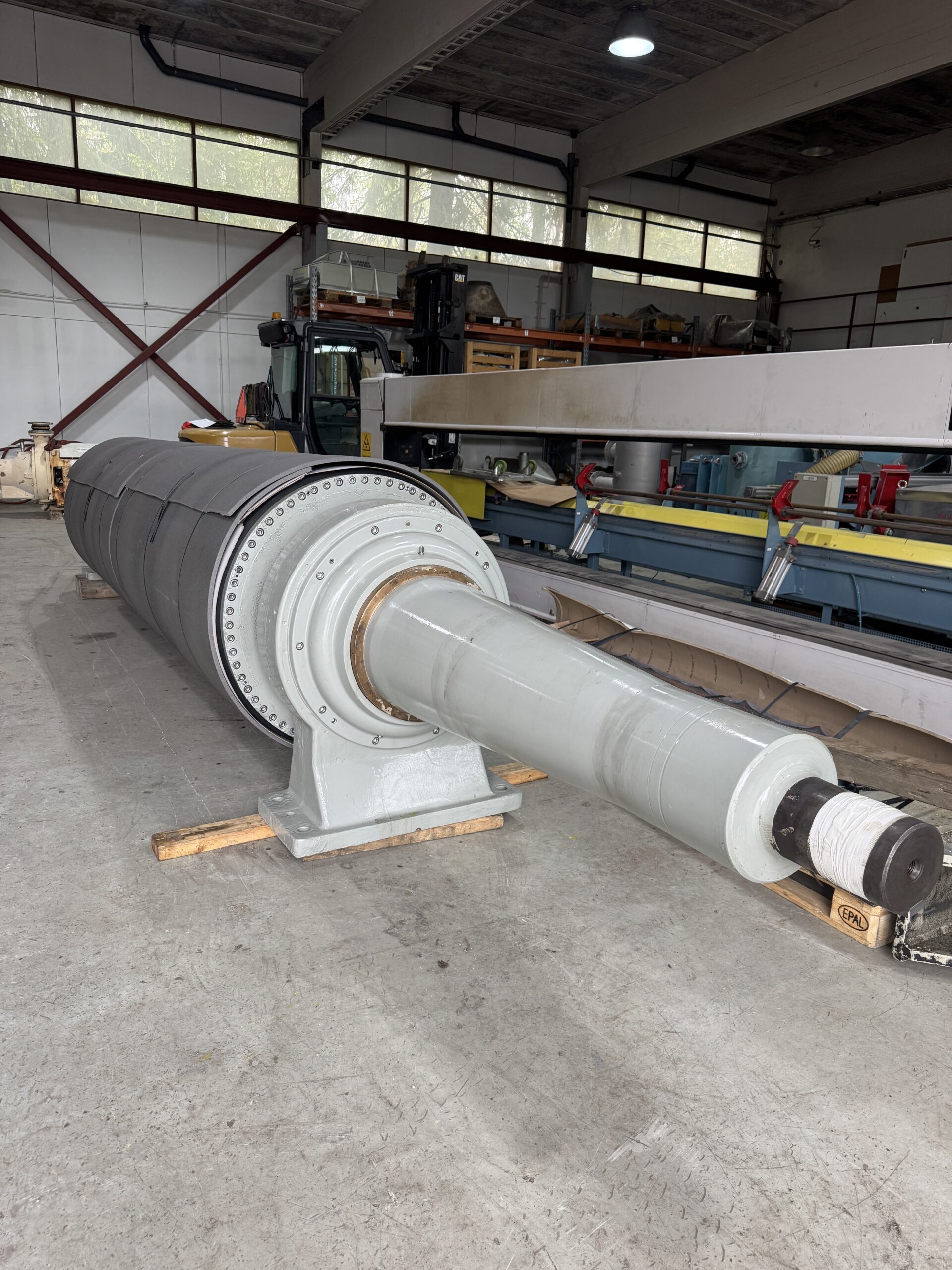

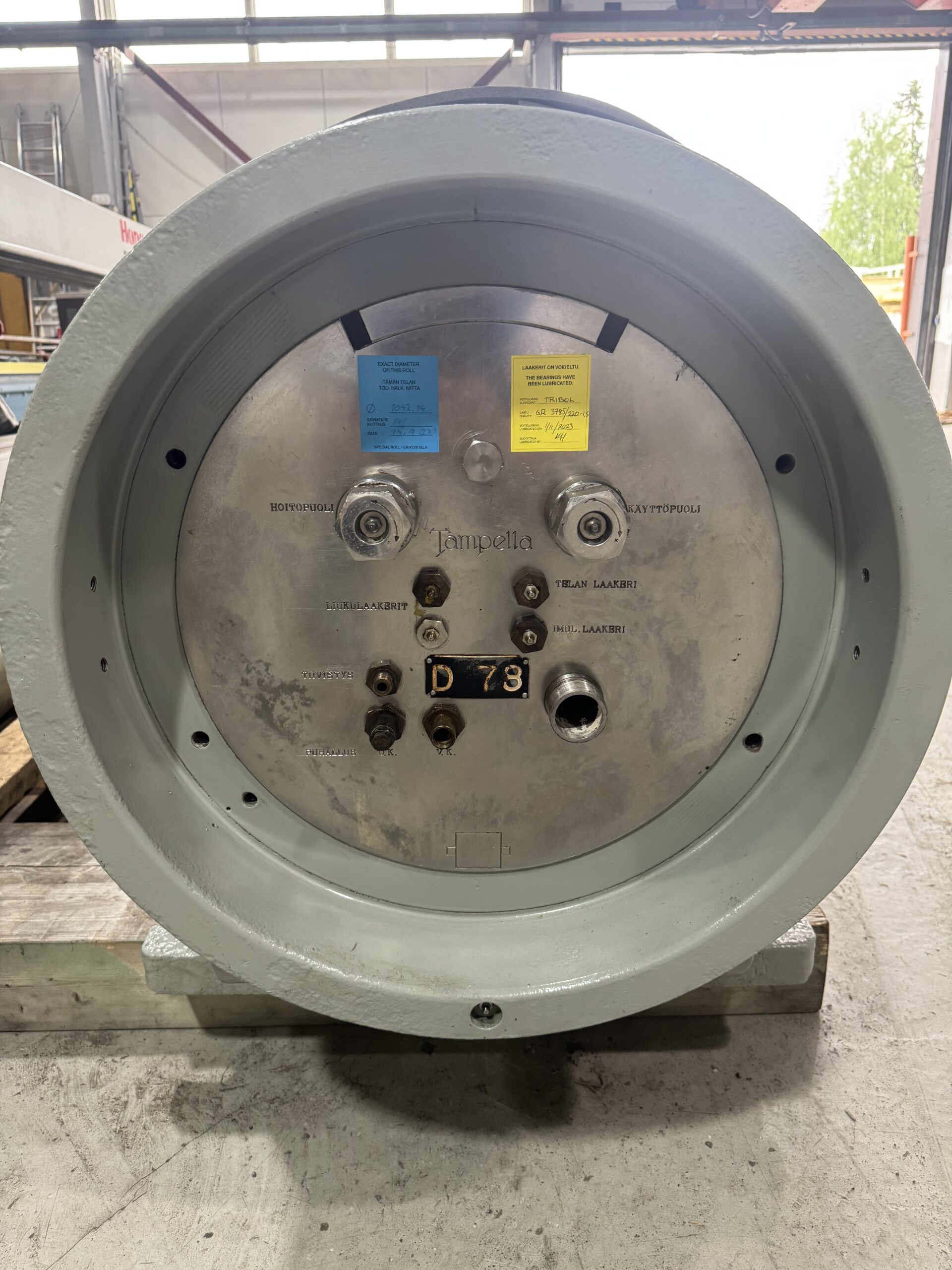

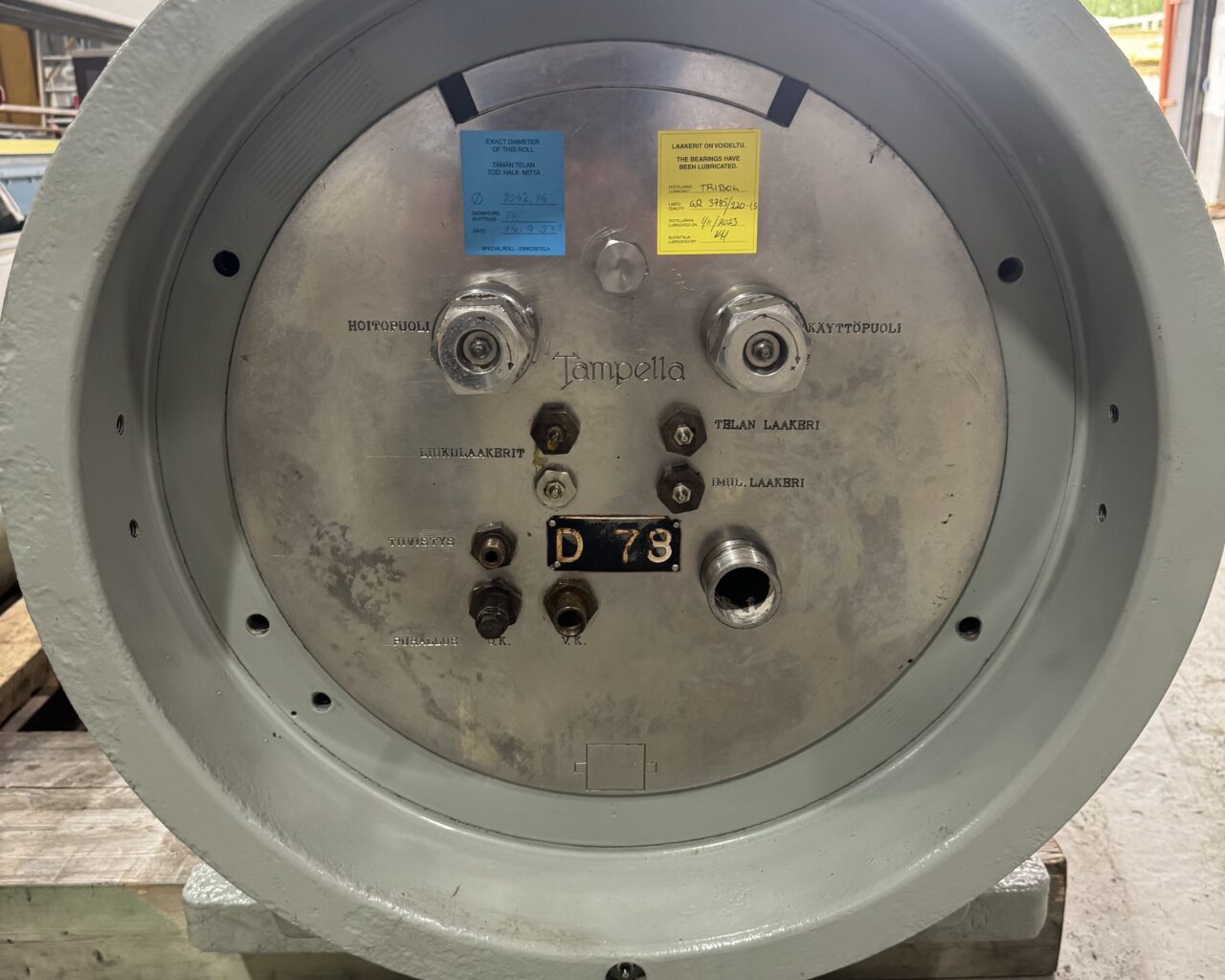

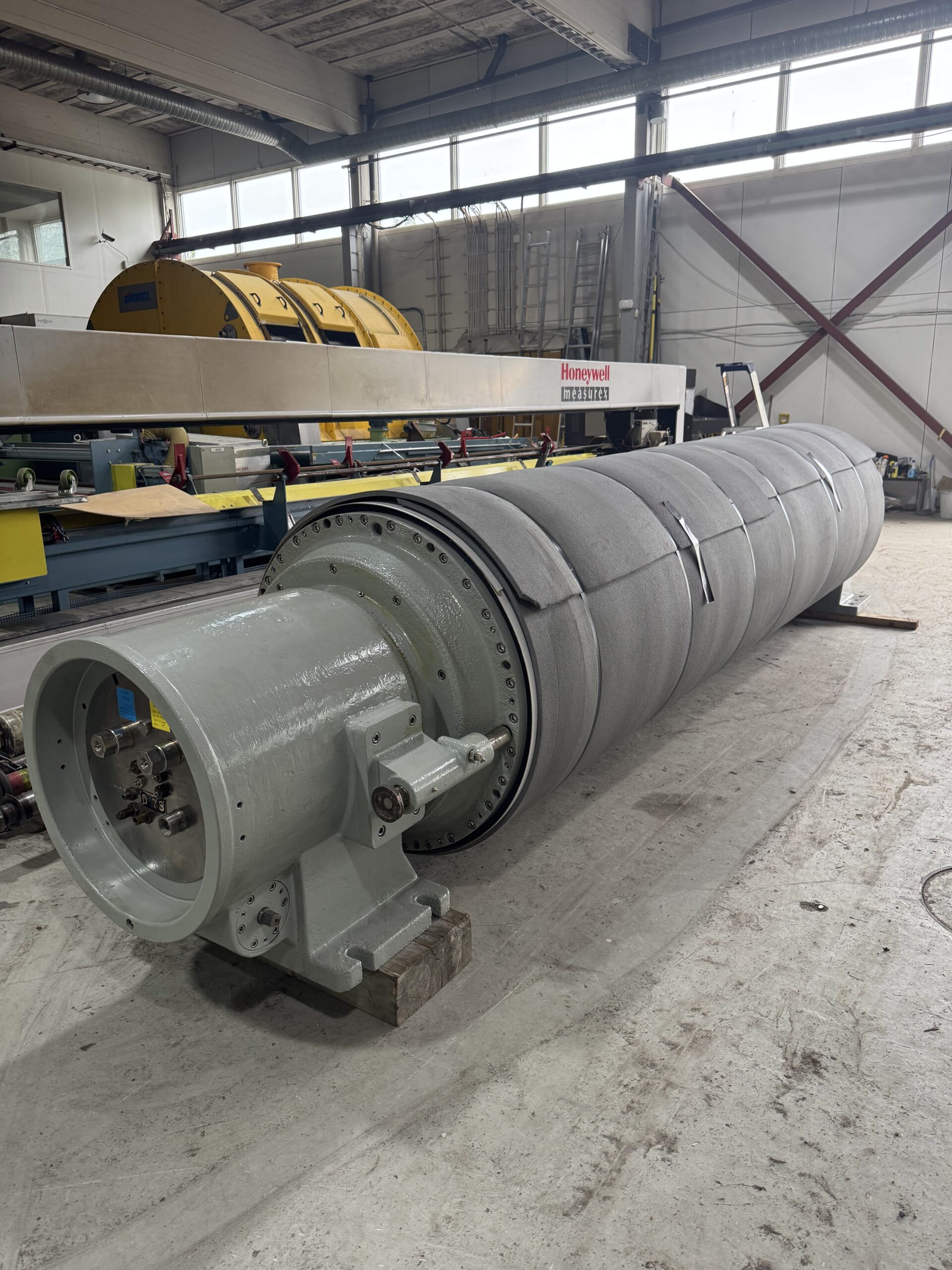

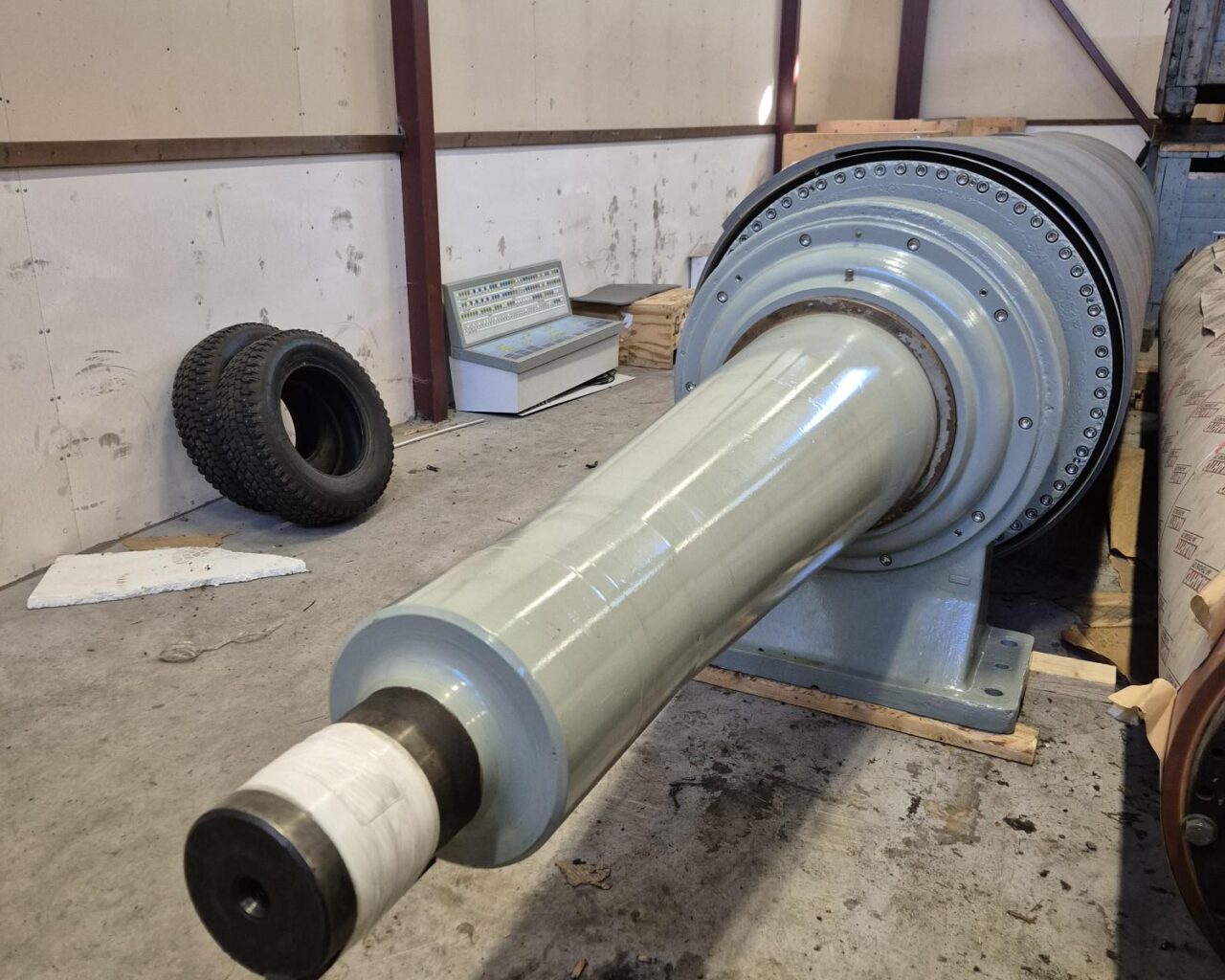

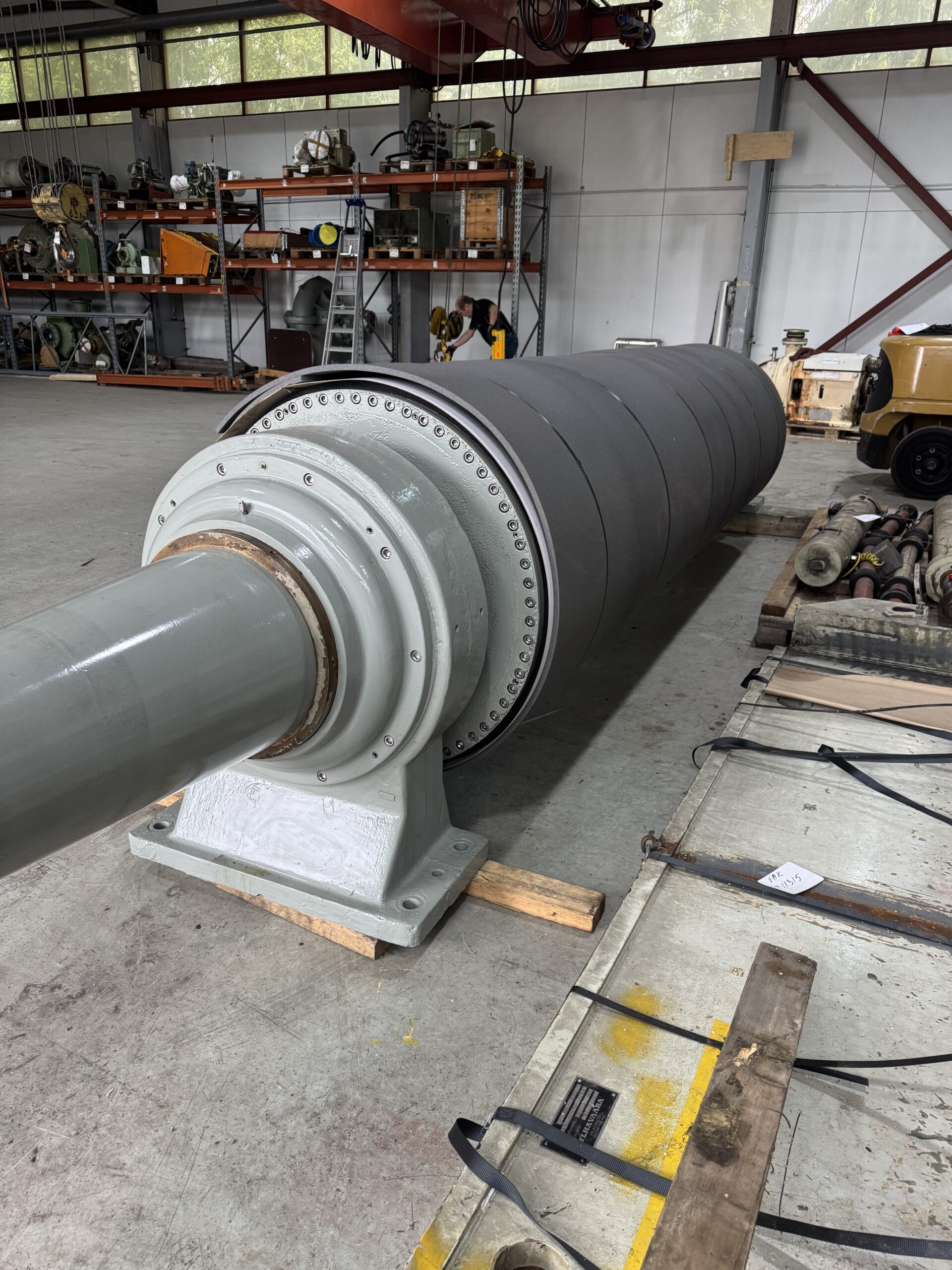

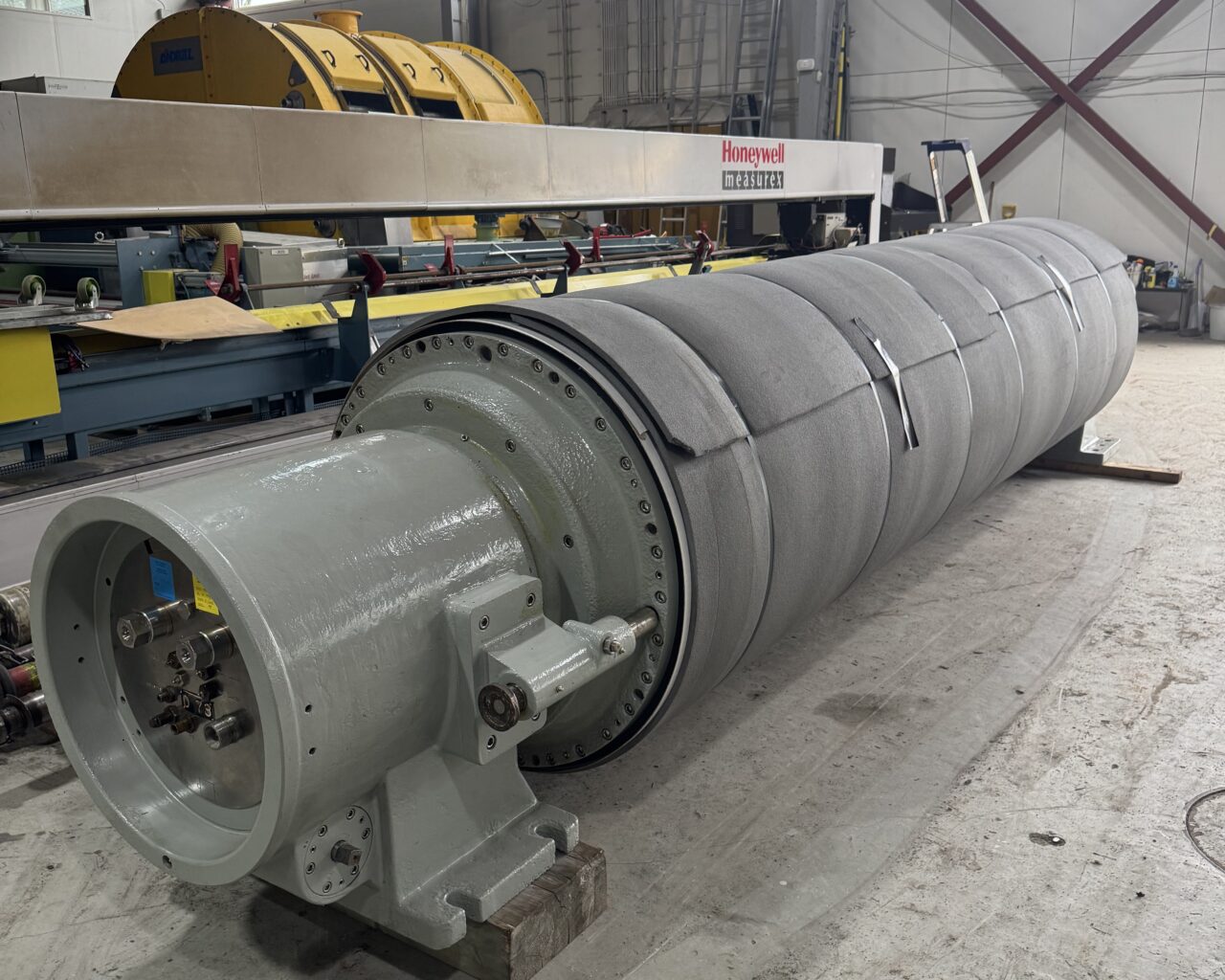

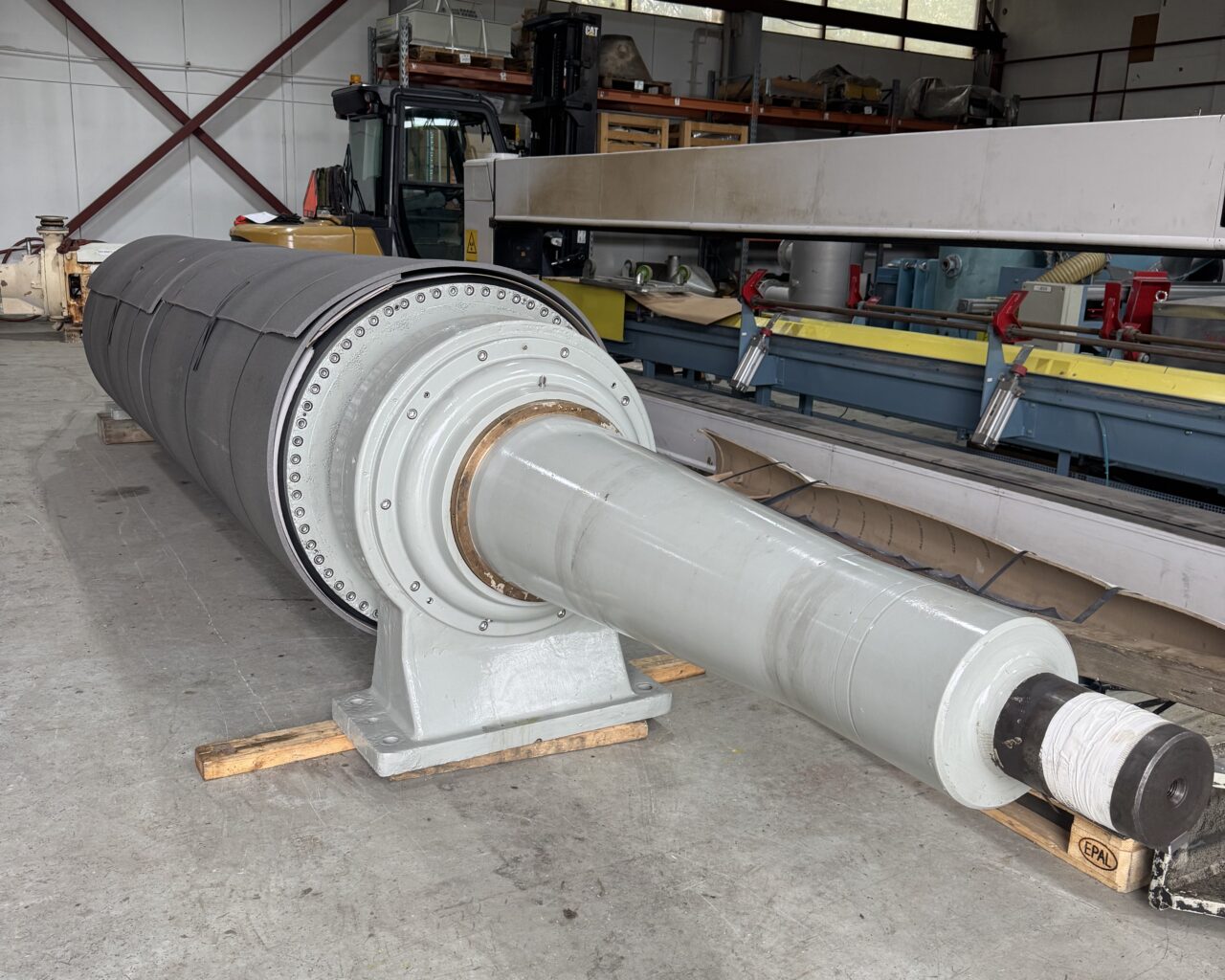

VALMET SUCTION roll for board machine

– Face max. 3700 mm, min. 3200 mm

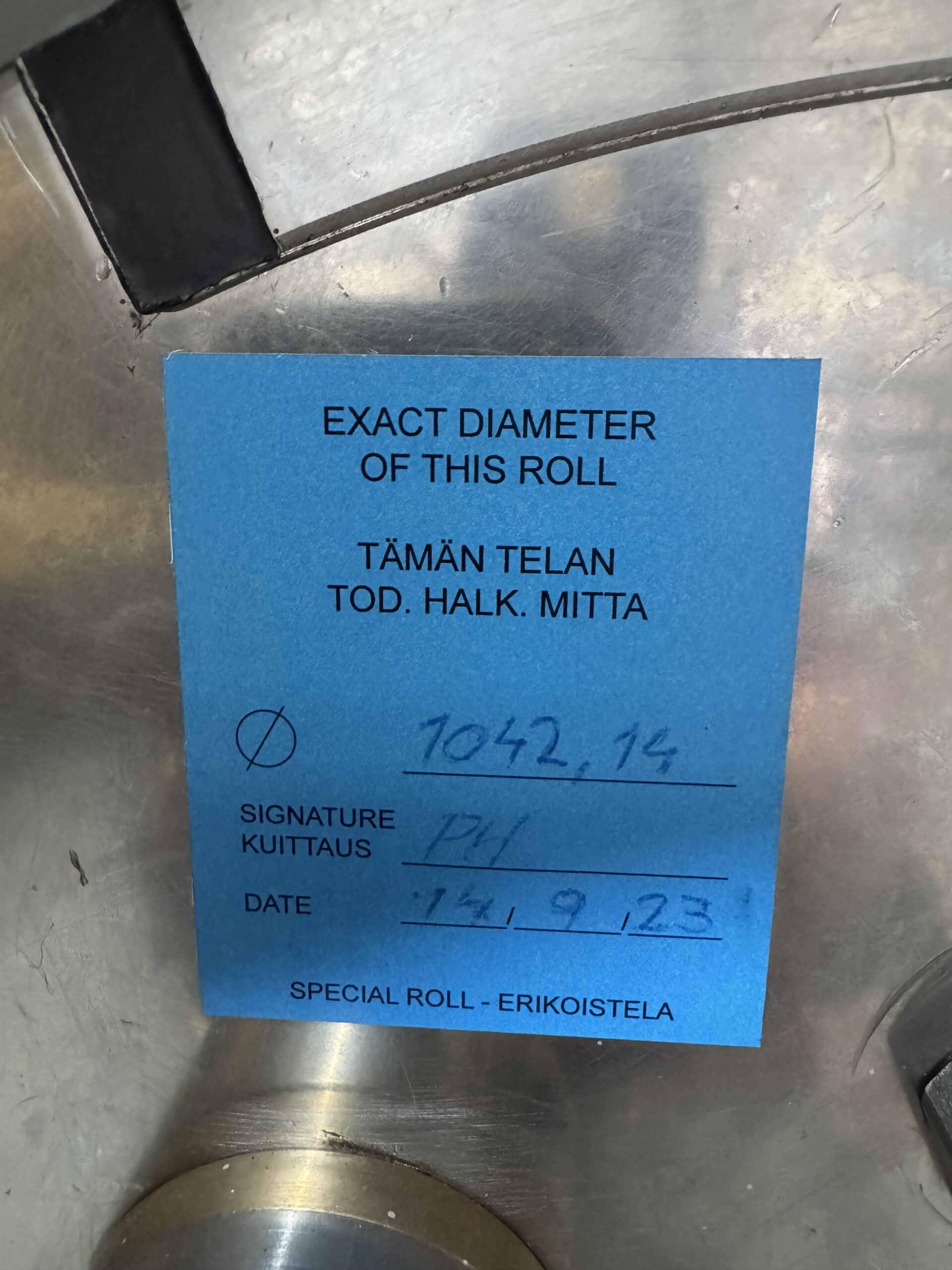

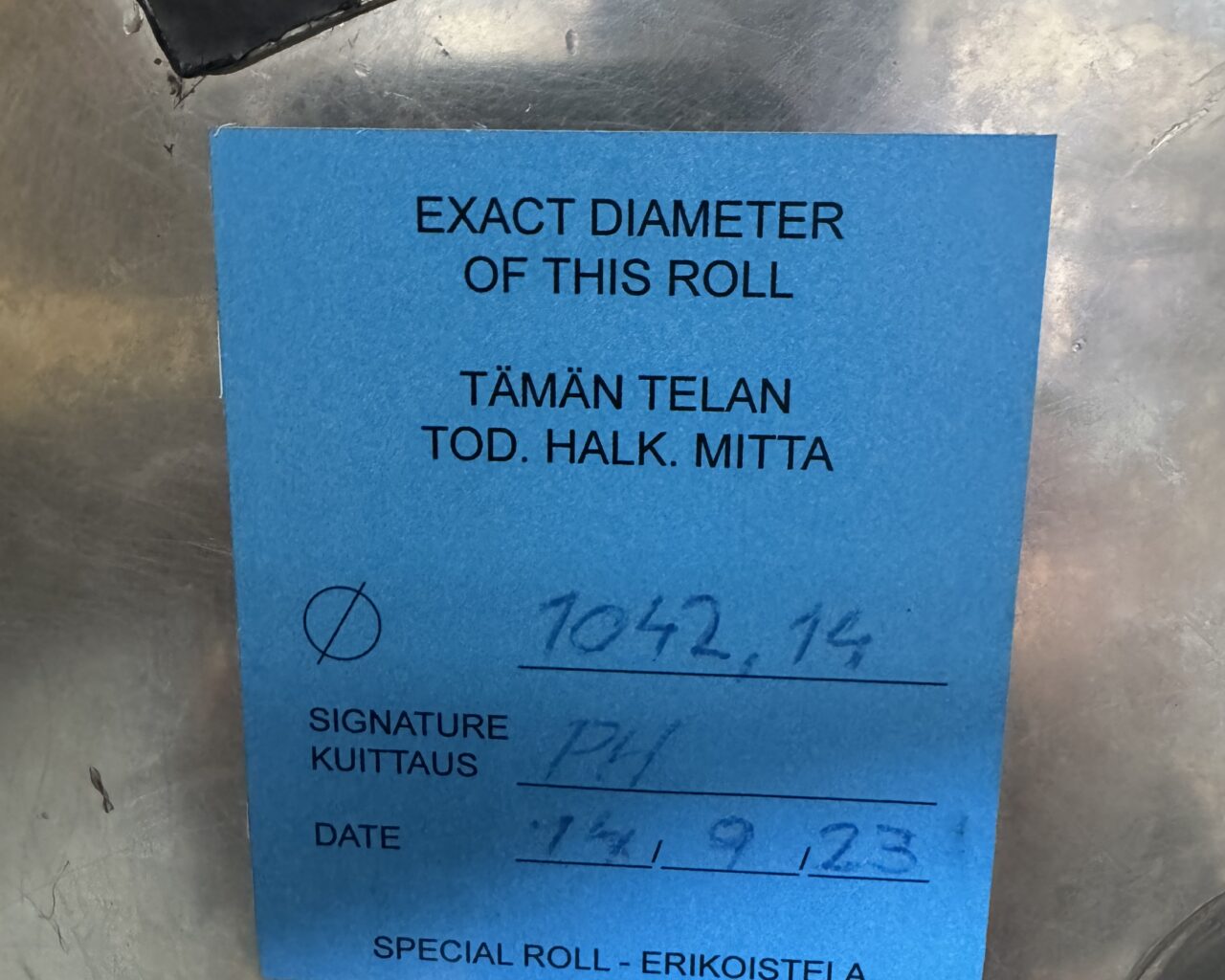

– Diameter 1040 mm, Valmet checking after overhoul 1042,14 mm

– Bearing housing center-to-center distance : 4738 mm

– Total enght of roll : 7108 mm

– weight : 10 000 Kg

Previous board machine : Folding box board machine in Finland ( 500 rpm ). Suction roll available in Varaoke warehouse in FINLAND

The suction roll has full serviced in Valmet 22.5.2022 and after service roll was as a spare roll and was not used in production after 22.5.2022. Below is the content of the 2022 maintenance.

POS 10 – Suction Roll Reconditioning

Roll ID: A512935
Dimensions: 1000 / 1040 / 4020
Drawing: A512935
Quantity: 1 pc

Disassembly and Inspection of the Roll

  • Unloading of the shipment and incoming inspection
  • External washing of the roll
  • Removal of the tending-side flange shaft from the shell and withdrawal of the suction box
  • Removal of the drive side from the shell
  • Removal of the tending side from the suction box

Suction Box Service

  • Washing of the suction box
  • Inspection of end and side seals
  • Replacement of end seals (incl. new seals)
  • Replacement of side seals (incl. new seals)
  • Replacement of loading hoses (incl. new hoses)
  • Visual inspection of the general condition of the suction box

Inspection

  • Corrosion damage
  • Seal holders
  • Lubrication and washing pipes
  • Functionality of adjustment slides
  • Pressure gauges
  • Dimensional inspection of pipe shafts
  • Dimensional inspection of the rear internal bearing shaft
  • Cleaning and alignment of lubrication spray pipe and nozzles
  • Replacement of V-ring on tending-side pipe shaft (incl. new V-ring)
  • Replacement of V-ring on drive-side pipe shaft (incl. new V-ring)
  • Inspection of suction connections and pressure gauges
  • Inspection of suction box support roller
  • Attachment of the tending side to the suction box

Flange Shaft (Tending and Drive Side)

  • Disassembly of tending and drive sides
  • Cleaning of parts and dimensional inspections
  • Disassembly of rear internal bearing and cleaning of parts
  • Inspection of rear internal bearing and components
  • Inspection of rear internal bearing lubrication line
  • Cleaning and inspection of main bearings
  • Inspection of bearing tapers and fit dimensions
  • Replacement of seals (incl. new rubber seals)
  • Bearing installation on tending and drive sides

Assembly of the Roll

  • Assembly of rear internal bearing with a new bearing* and new bearing components:
    • Bushing
    • Bearing housing cover
    • Bearing housing
  • Installation of drive side into the shell
  • Installation of the suction box inside the shell

Painting

  • Sandblasting
  • Priming
  • Top coating: color shade KY8

Packing and Shipment

  • Corrosion protection for bearings
  • Protective cardboard

POS 20 – Press Roll Cover PT‑V 15 P&J

Roll Data

  • Roll ID: A512935
  • Drawing: A512935
  • Coated OD: 1040 mm
  • Shell OD: 1000 mm
  • Shell length: 4020 mm
  • Coating length: 4020 mm

Technical Scope

  • Receipt of shell and visual inspection
  • Removal of old cover
  • Crack inspection of the shell and remaining lifetime assessment
  • Dimensional inspection of the shell:
    • Alignment
    • Outer diameter
    • Run-outs
  • Valmet Press Roll Cover PT‑V rubber covering
    • Hardness: 15 ±3 P&J
    • Thickness: 20 mm
  • Final grinding

Additional Specifications

  • Crowning: no crowning
  • End chamfers: no end chamfers
  • Surface roughness: Ra 3.2
  • Suction and blind drilling: Shell drilling pattern Sandasky DA10612
    • Hole diameter in shell: 4.763 mm
    • No blind drilling
