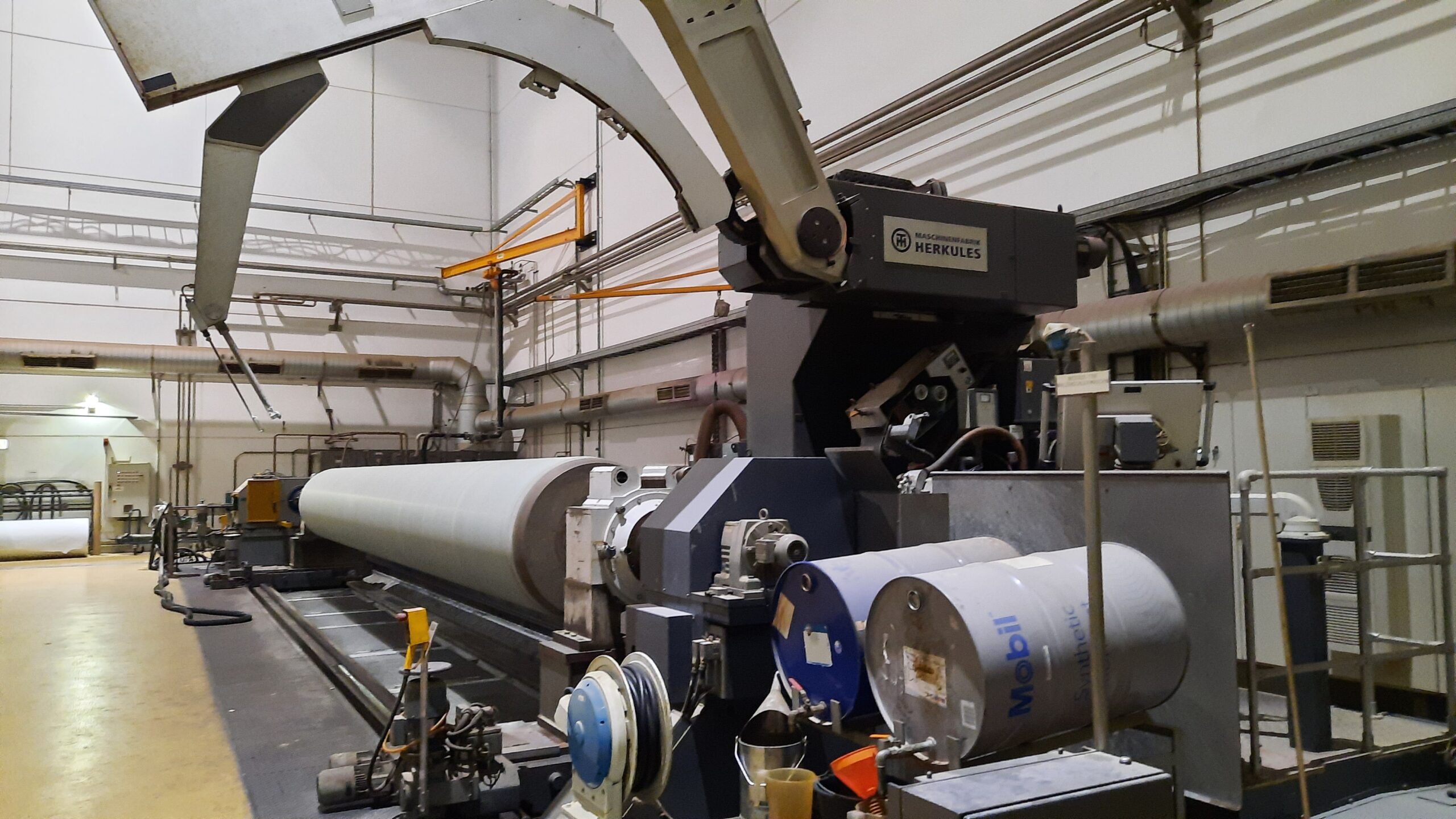

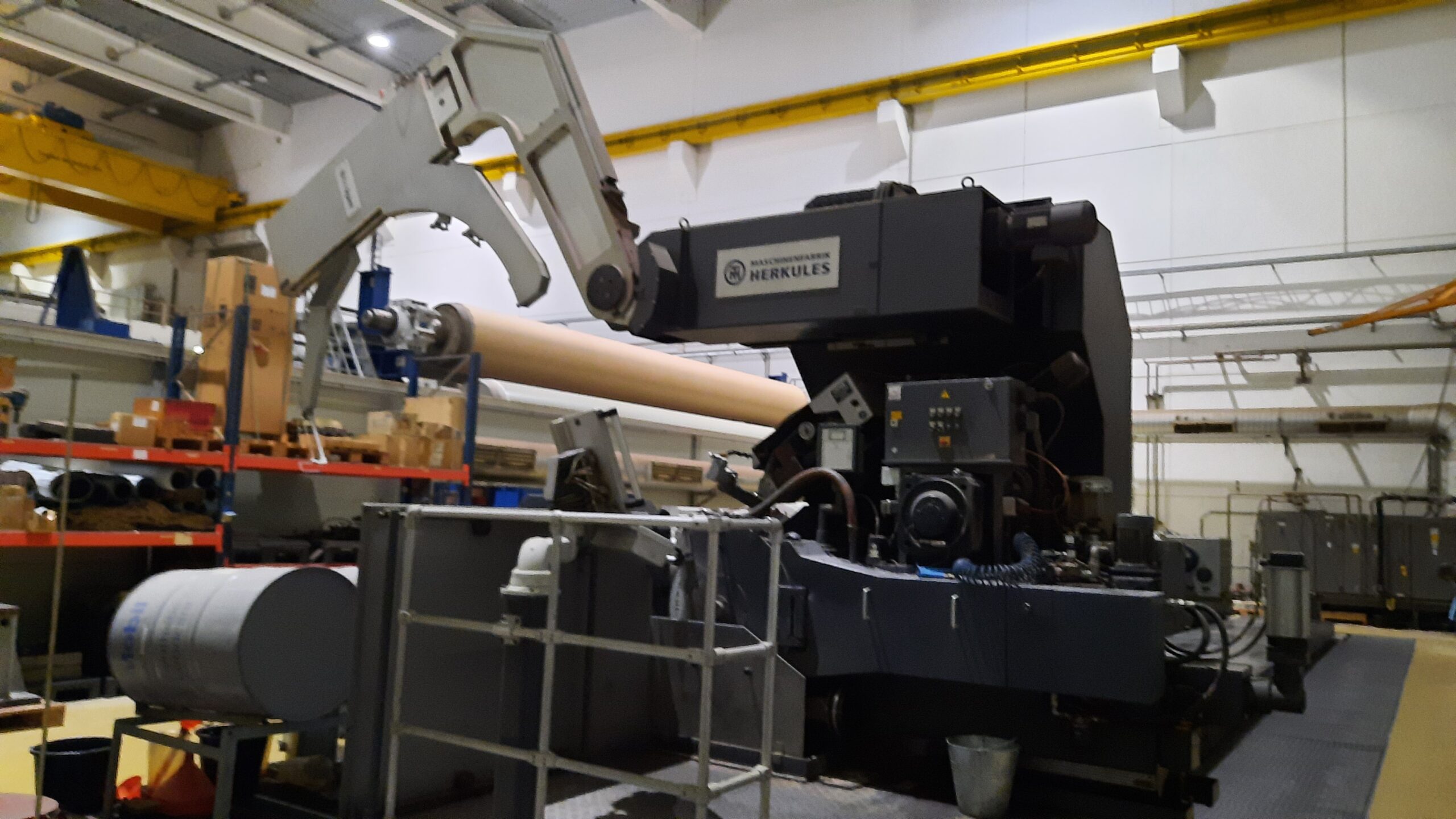

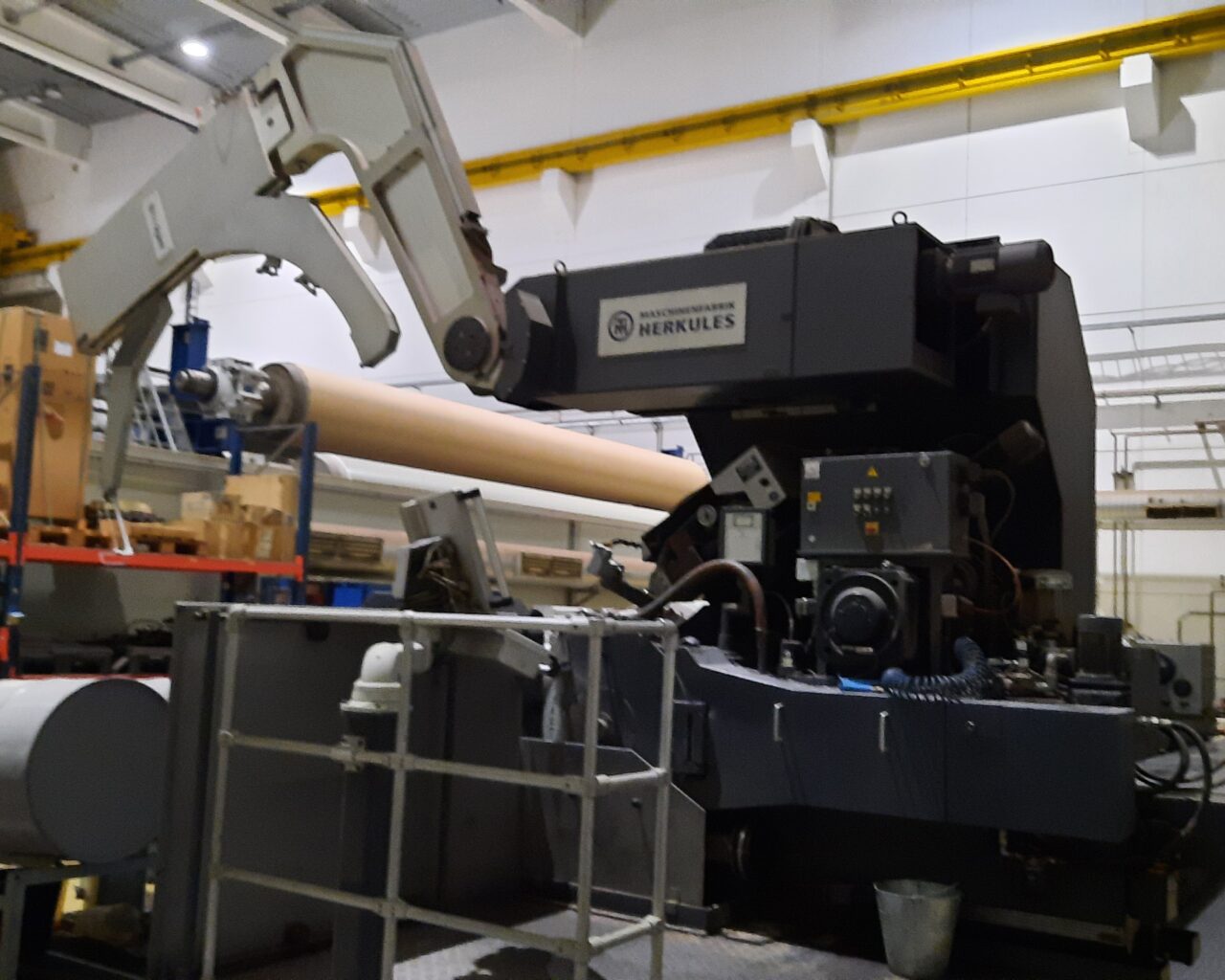

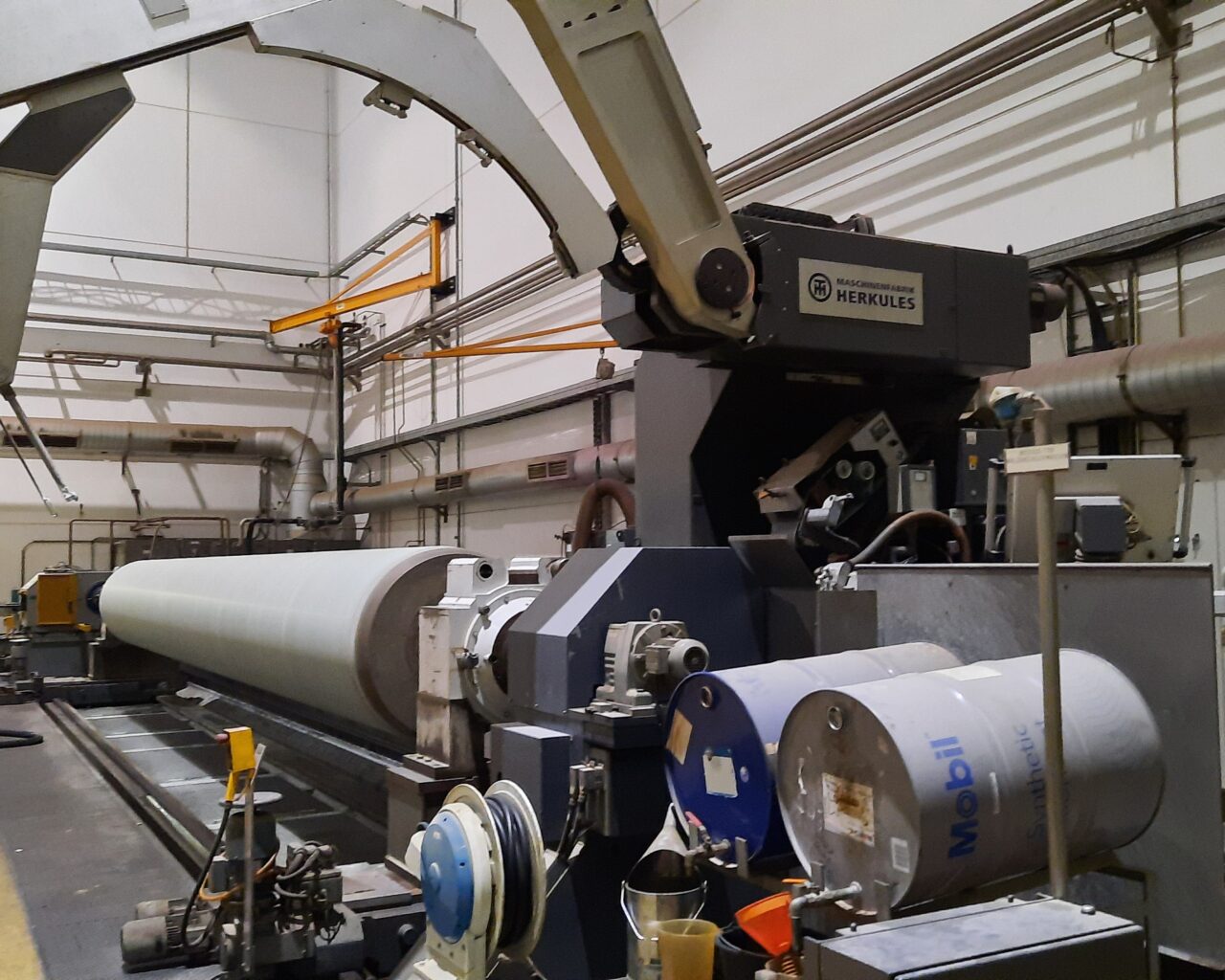

HERKULES ROLL GRINDING MACHINE P100 WSB 450 X 15000 / 13000 CNC
-
Print this page
- Product ID: VAK11362
- Name: HERKULES ROLL GRINDING MACHINE P100 WSB 450 X 15000 / 13000 CNC
HERKULES CNC ROLL GRINDING MACHINE CNC CONTROL
Manufacturer year : 2007
Technican specifications
Distance between centers : 15 000 mm
Max. grinding lenght : 13 000 mm
Max. diameter : 2000 mm
Smallest grinding diameter : 0 mm
Workpiece weight
Storage in hydrodynamic steady rests : 65 000 kg max.
Storage in dedicated bearings bearings : 110 000 kg max.
Headstock
Faceplate drive
Drive motor power : 100 KW
Faceplate speed : 1-27, 3-82,3, 9,2-250 KW 1/min
Nominal torgue of faceplate mx : 30 000 Nm
Longitudial adjustment
Travel : 3000 mm
Transverse adjusment
Travel : 3000 mm
Lateral adjustment
Adjustment range : 480 mm
Grinding wheel drive
Grinding wheel motor power : 63 kW
Grinding spindle speed : 400-1200 1/min
Cutting speed : 45 m/sec. max.
Z-axis
Continuosly adjustable speed 6-8000 mm/min
X-axis
Continous feed : 3-3000 mm/min
Continuous feed : 0.01-0.2
Grinding wheel
Bore : 304.8 mm
Diam. : 750 mm max.
Width (with spacers) : 75/100 mm
Mesuring device
Diameter measuring range : 400-2000 mm
Mounting area of the steady rest jaws
Hydrodynamic : 100-600 mm
Transverse adjustment
Adjustment travel : 480 mm
Electrical
Total connected load : approx. 250 kVA
Current : 420 A
Voltage : 400 V
Frequency : 50 Hz
Compressed air
Pressure . 6 bar
Belt grinding device
Belt lenght : 3500 mm
Belt width : 100 mm
Contact wheeldiameter : 600 mm
Superfinishing device
Band width : 200 mm
Oscillation stroke : 5 mm
Oscillation speed (strokes) : 100-700 min
Rotating device
Cutting force : max. 2000 N
Groove milling device
Drive power : 3 kW
Cutter speed . max. rpm 1650
Angle adjustment : max. degrees +/- 3
Cardan shaft drive
Torgue : max. 47000 Nm
Lenght extencion : max. 0 mm
Overal lenght : min. 910 mm
Speed : max. 250 rpm
Availability, immediately
