DE-INKING PLANT 100 ton/day from Finland
-
Print this page
- Product ID: VAK11355
- Name: DE-INKING PLANT 100 ton/day from Finland
Also available Tissue paper machine in same location
Details under the link:
https://varaoke.eu/products/tissue-machines/tissue-paper-machine-3550-mm-100-ton-day/
TECHNICAL DATA
Year of construction : 1986, renewed in 2018
Production Capacity : 100 ton/day
Raw material : recycled paper and broke
Drive voltage : 500 V 50 Hz
DCS : Valmet DNA
Key products : De-inked pulp
MAIN EQUIPMENT
SECONDARY PULPER:
o Type : Andritz FibreGuard FG02HR
o Power : 90 kW
o Year of manufacture : 2018

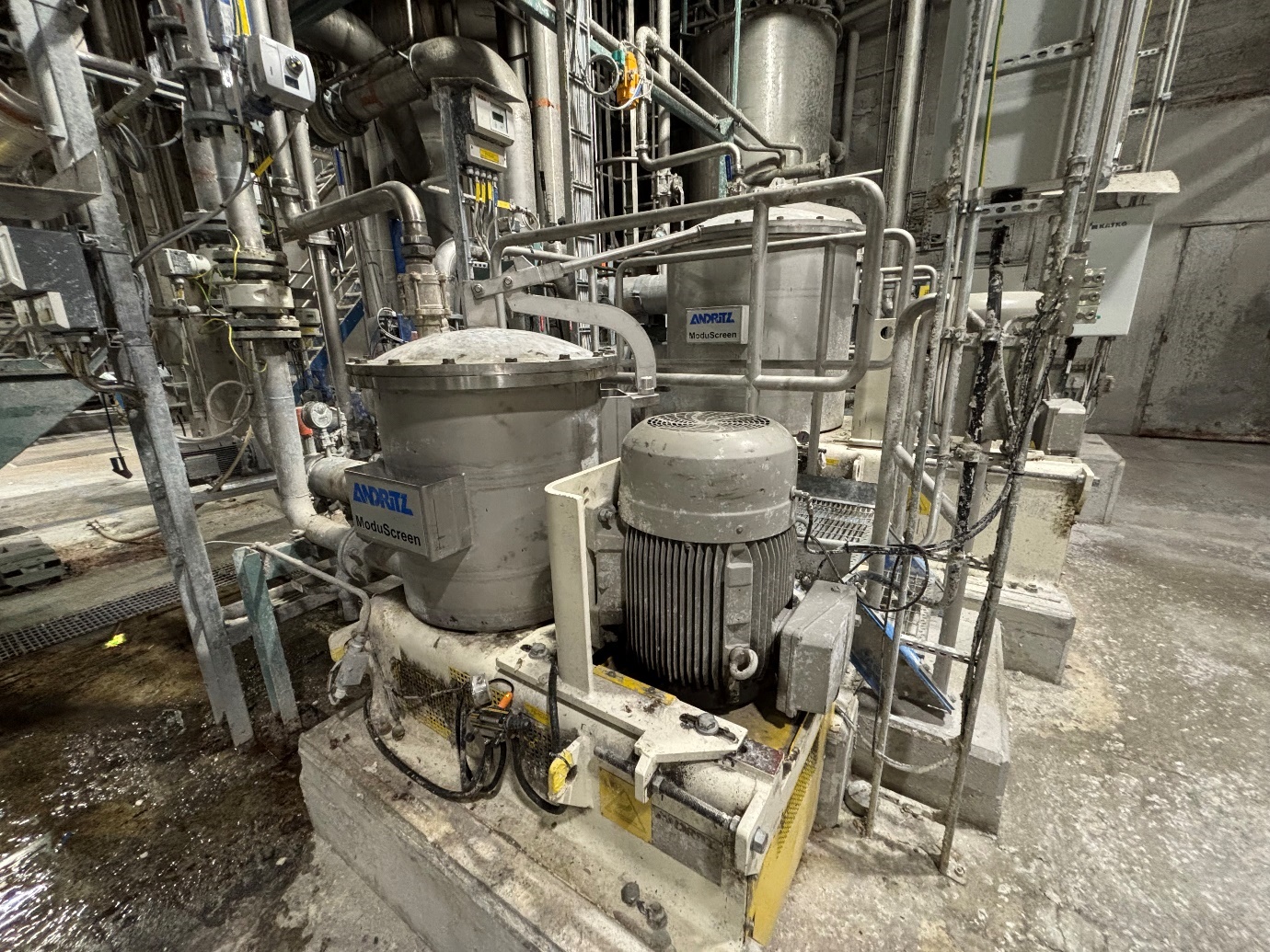

PRESSURE SCREENS FOR ROUGH SCREENING:
o Type : Andritz ModuScreen F30 (1 pcs), Andritz ModuScreen F10 (1 pcs) and Andritz ModuScreen T2C (1 pcs),
o Power : 75 kW, 30 kW and 55 kW
o Year of manufacture : 2018

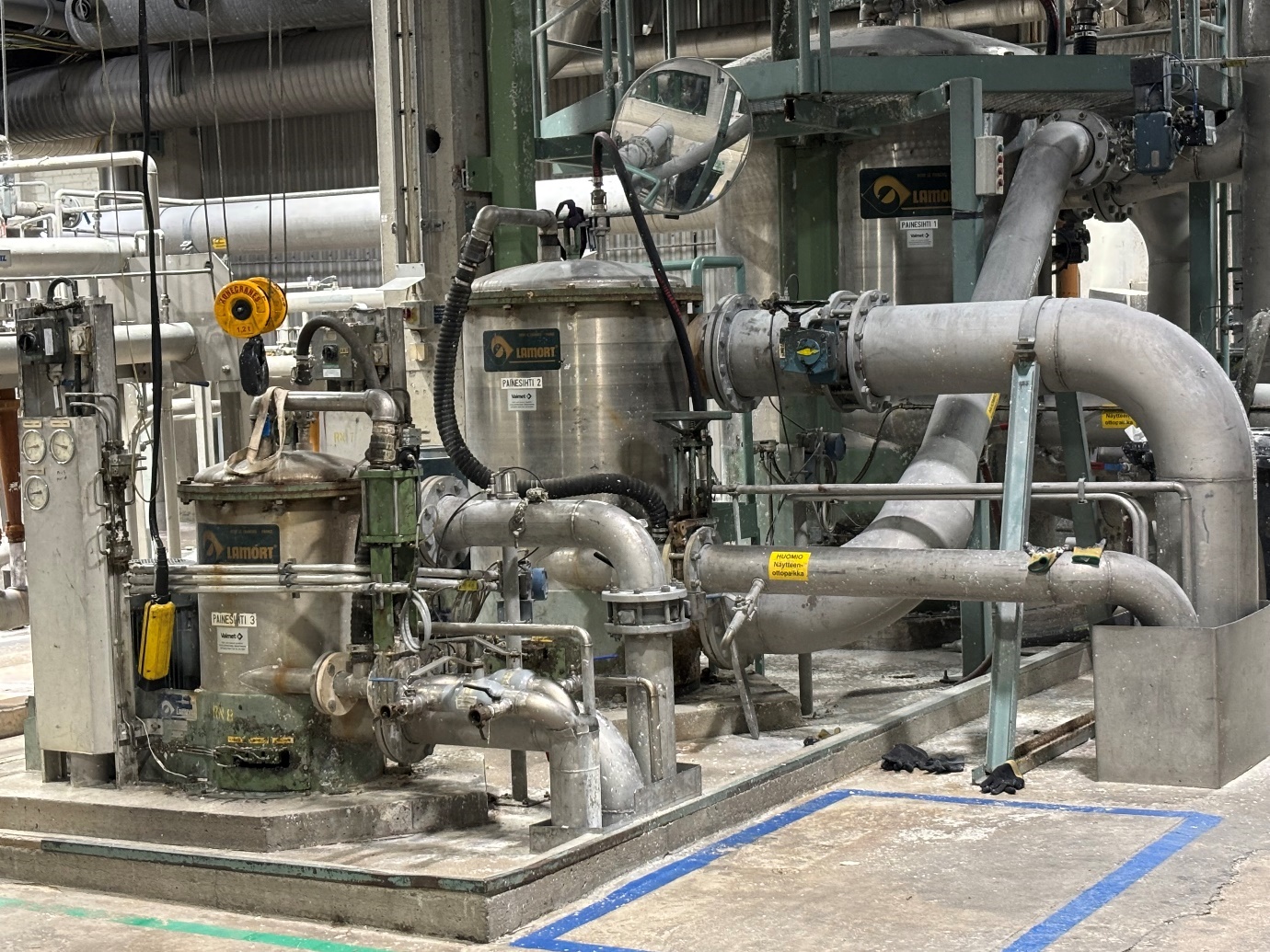

PRESSURE SCREENS FOR FINE SCREENING:
o Type : Lamort SPN12 (1 pcs), Lamort SPN7 (1 pcs) and Lamort SPN4 (1 pcs)
o Power : 55 kW, 18,5 kW and 11 kW
o Year of manufacture : 1985

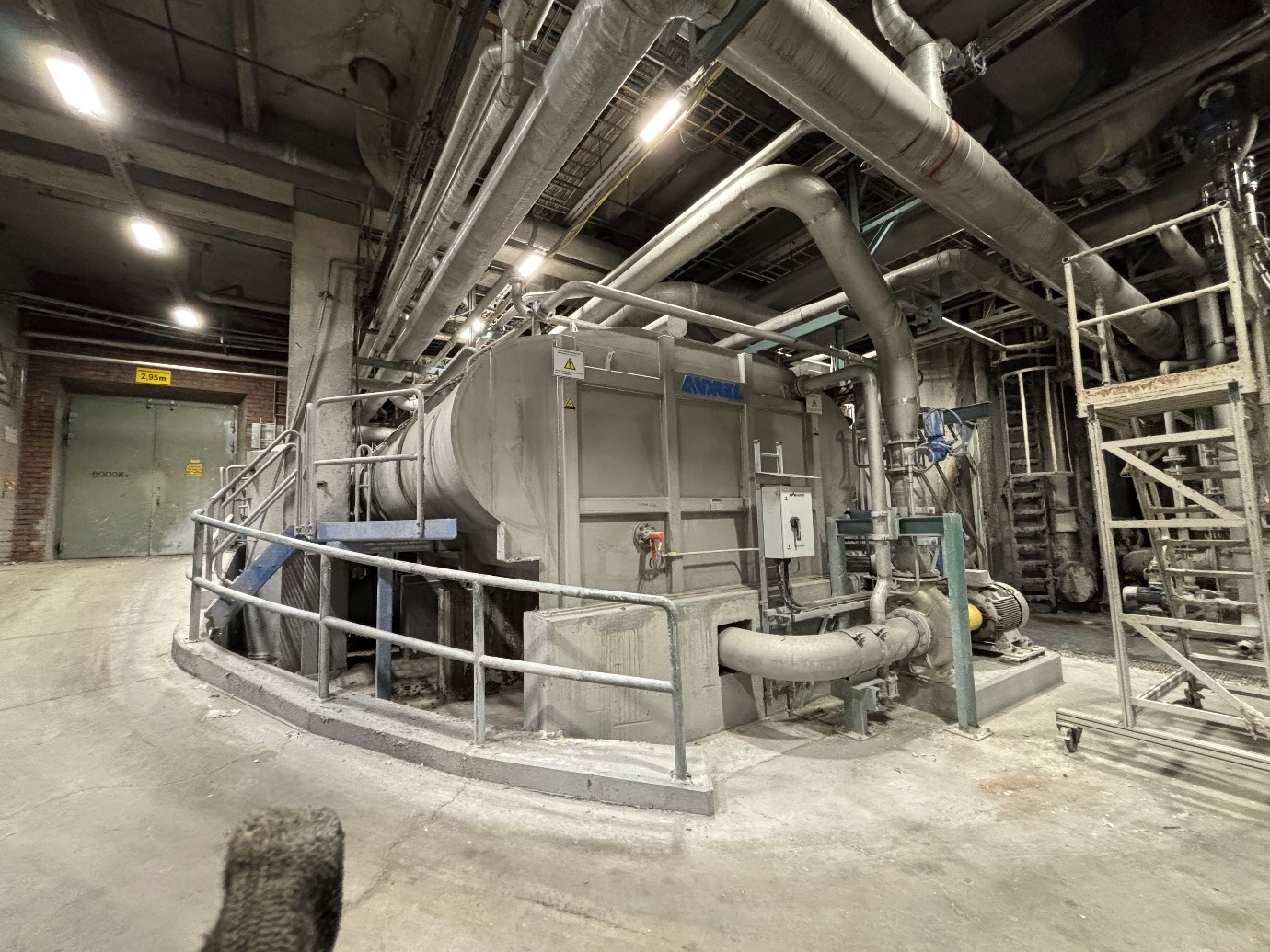

MASS FLOTATION:
o Type : Andritz SelectaFlot SFL1DL
o Year of manufacture : 2018

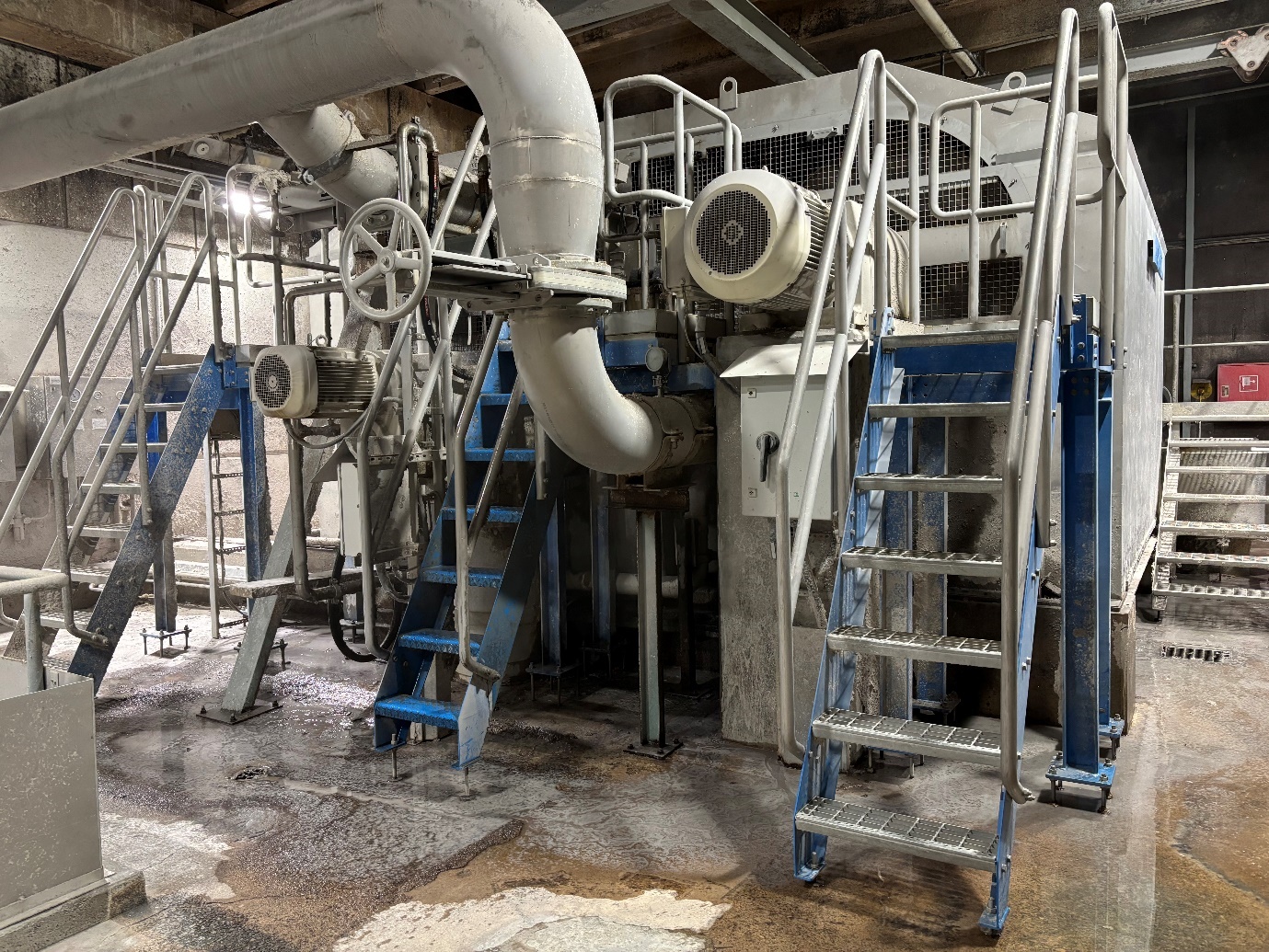

WASHER 1:
o Type : Andritz Speed Washer SWd30
o Wire width : 3200 mm
o Wire length : 11060 mm
o Power : 75 kW
o Year of manufacture : 2018

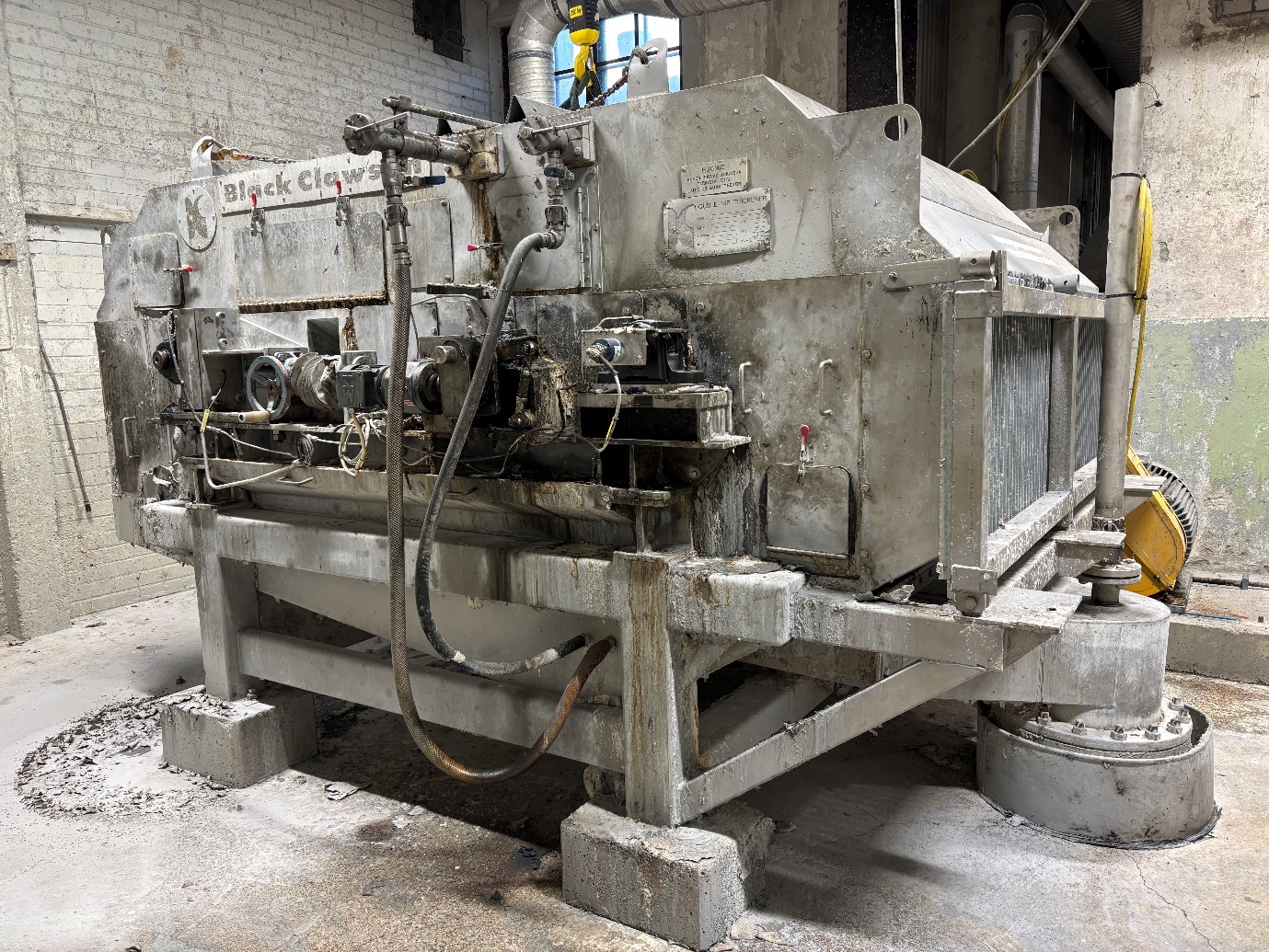

WASHER 2:
o Type : Black & Clawson Double Nip Thickener, size 200
o Wire width : 1910 mm
o Wire lenght : 6452 mm
o Power : 55 kW

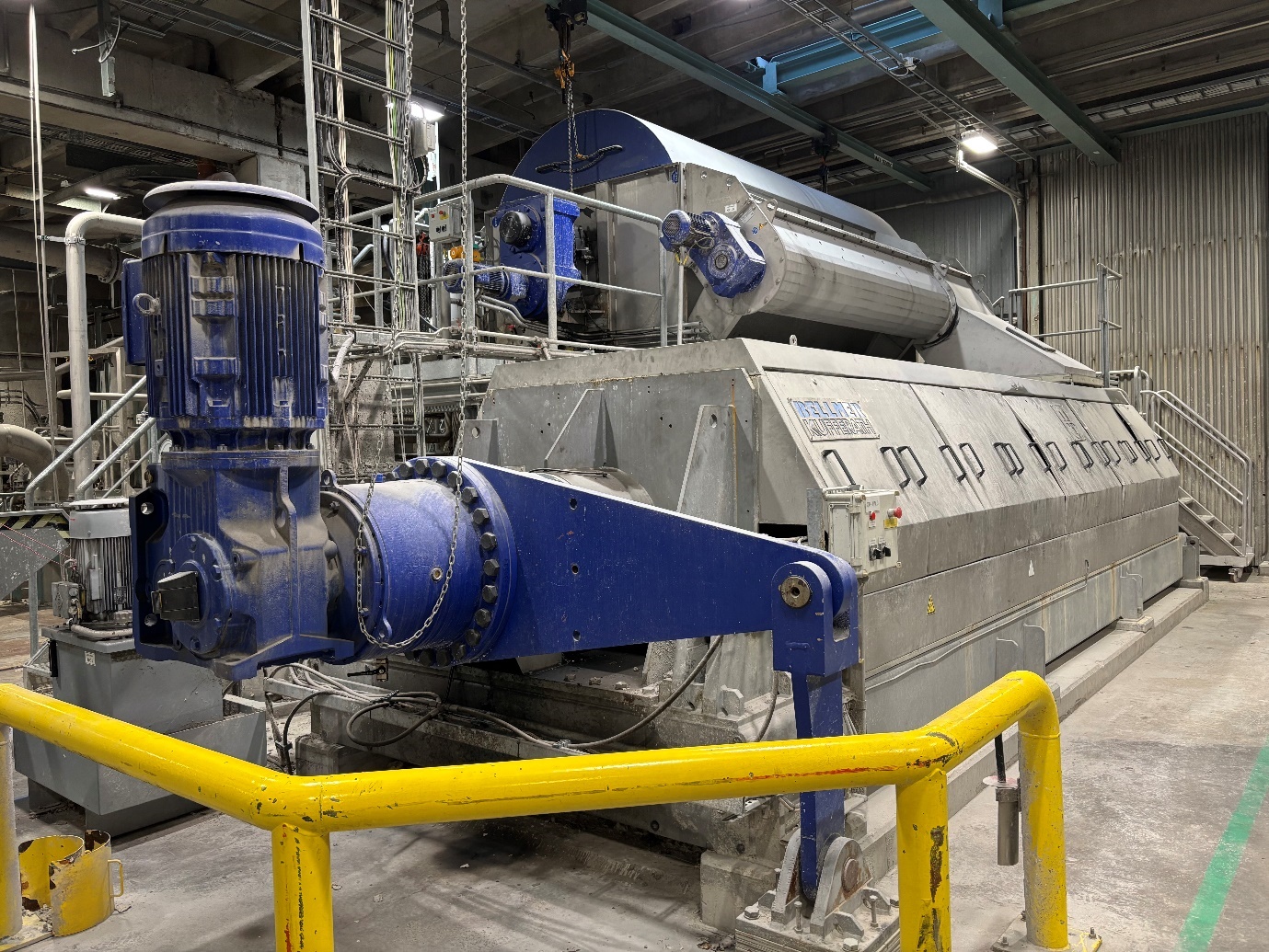

SLUDGE TREATMENT:
o Type : Bellmer Kufferath Akupress BX 1100LL-H (1 pcs), Bellmer Kufferath Sludge Reactor FR-3 (1 pcs), Bellmer Kufferath Sludge Precipitator AKSE 175/10 (1 pcs) and Sludge Press Dosing Screw (1 pcs)
o Sludge dry-content : ~35-50 %
o Year of manufacture : 2017

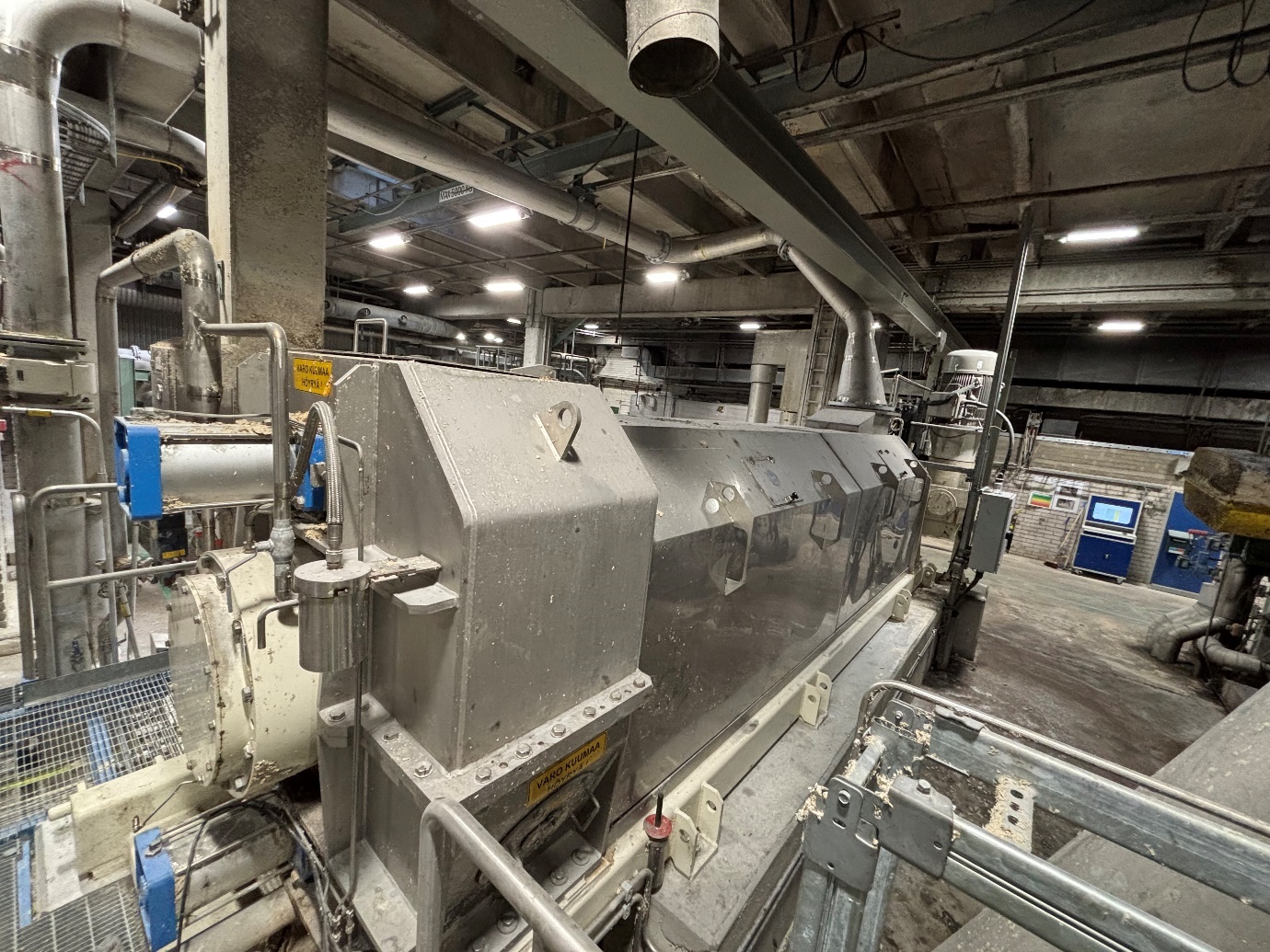

SCREW PRESS:
o Type : Andritz Pulp Screw Press SCP1005
o Power : 110 kW
o Year of manufacture : 2018

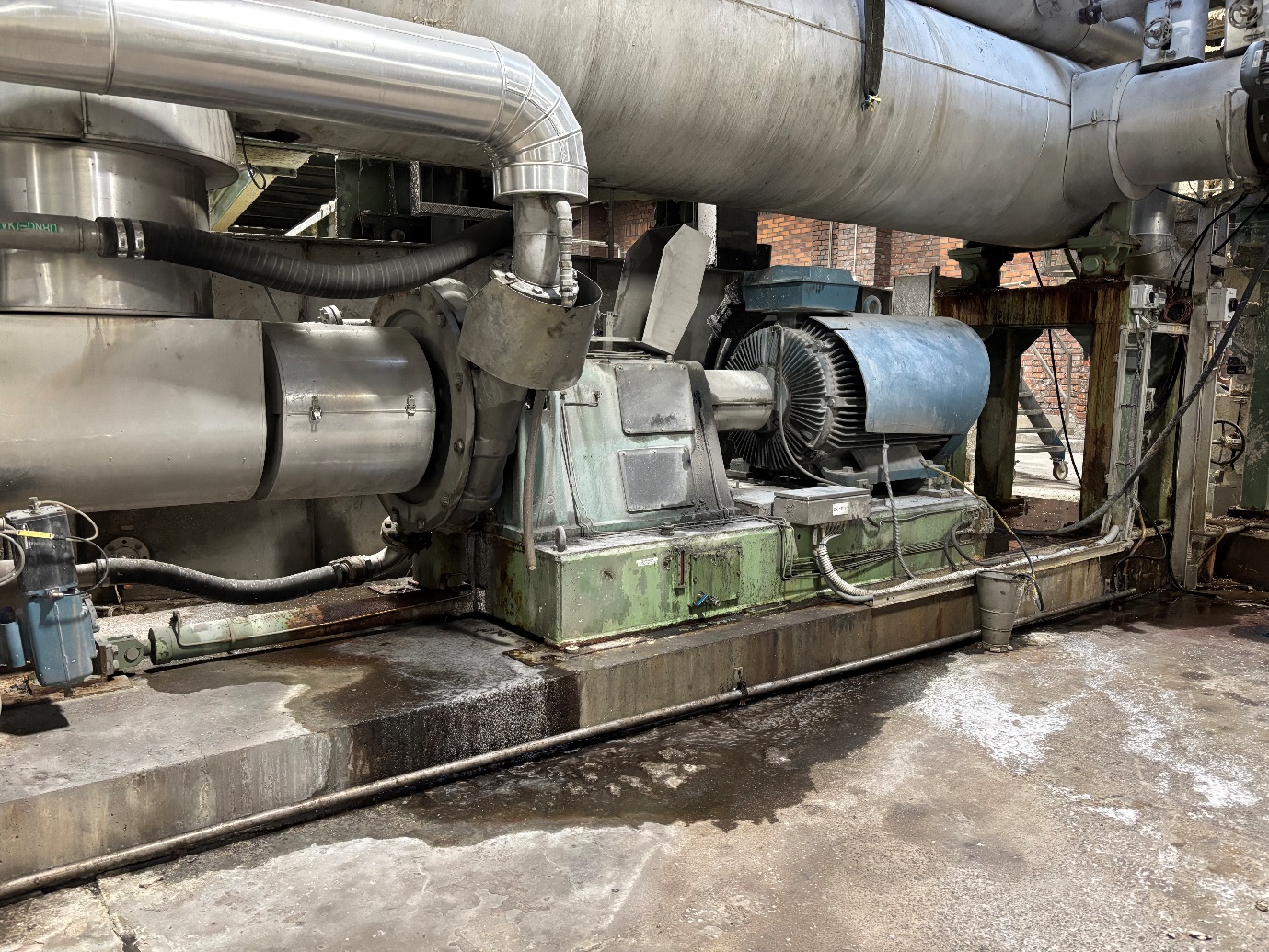

DISPERGER:
o Type : Cellwood Krima 710
o Power : 400 kW
o Year of manufacture : 1992
ACCESSORIES:
o Spare parts:
o Washer wires
- Andritz Tecnowash M 50/36 for washer 1 (2 pcs)
- Andritz Tecnowash M 60/54 for washer 2 (2 pcs)
ACCESSORIES
Include: pumps, tanks, agitators, instruments, valves
