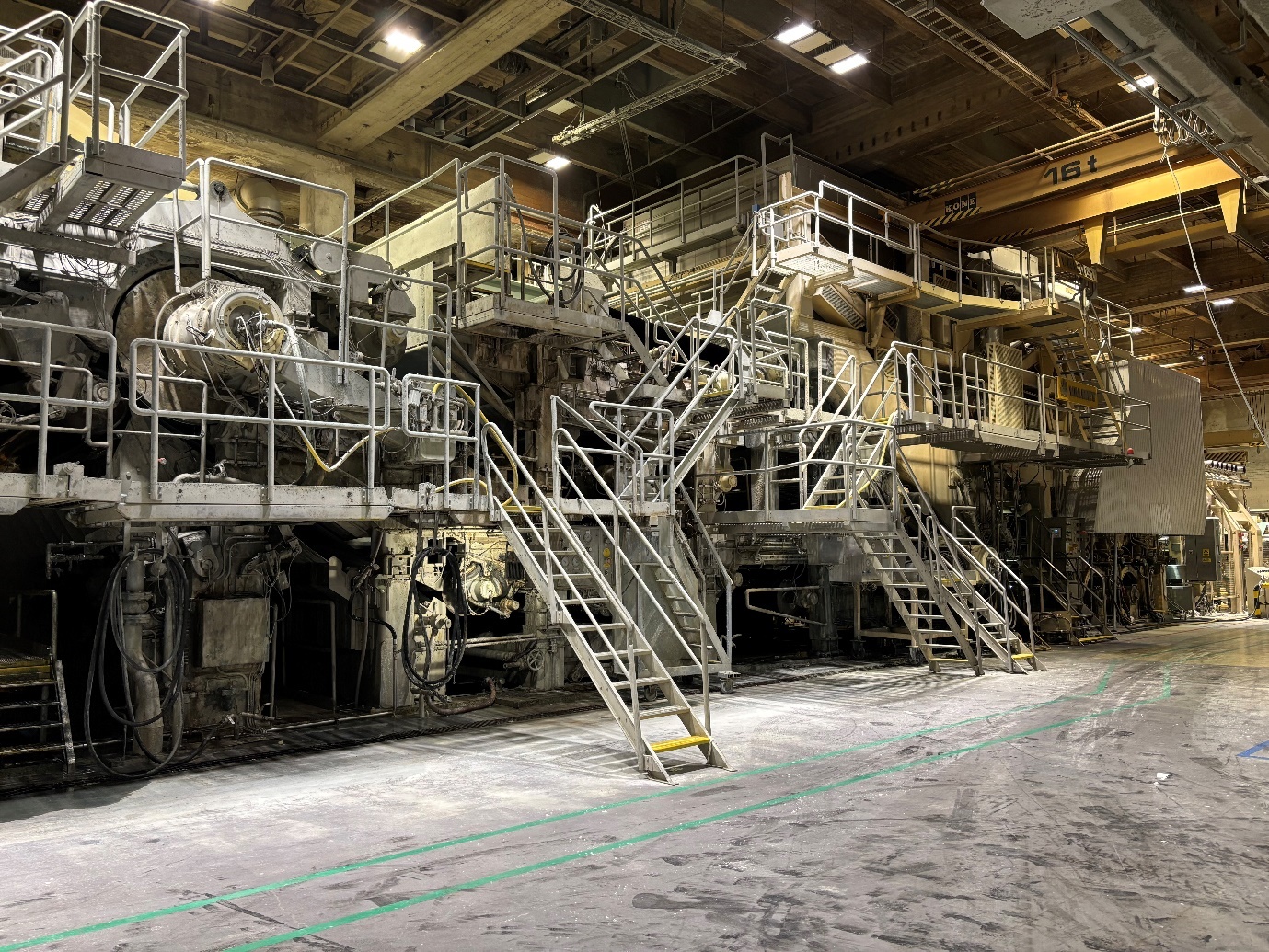

VALMET TISSUE PAPER MACHINE 3550 mm 100 ton/day from Finland

    Print this page
  • Product ID: VAK11356
  • Name: VALMET TISSUE PAPER MACHINE 3550 mm 100 ton/day from Finland



TECHNICAL DATA

Manufacturer :              Valmet

Type :                               Twin-wire, wet crep

Year of construction :    1988

Paper width on reel :     3460 mm

Production speed :        up to 1300 m/min

Grammage :                    17 to 50 GSM

Drying Capacity :           100 ton/day

Raw material :                Virgin pulp / De-inked pulp

Drive voltage :                500 V 50 Hz

Machine Drive type :     (DC-500 V)

Hood Drive type :          ABB DC

DCS :                                Valmet DNA

Key products :                hand towels, system towels and other tissue grades



SCOPE OF SUPPLY

HEADBOX:

o Supplier :                   Valmet

o Pond side width: :     3550 mm

o Layers: :                       1

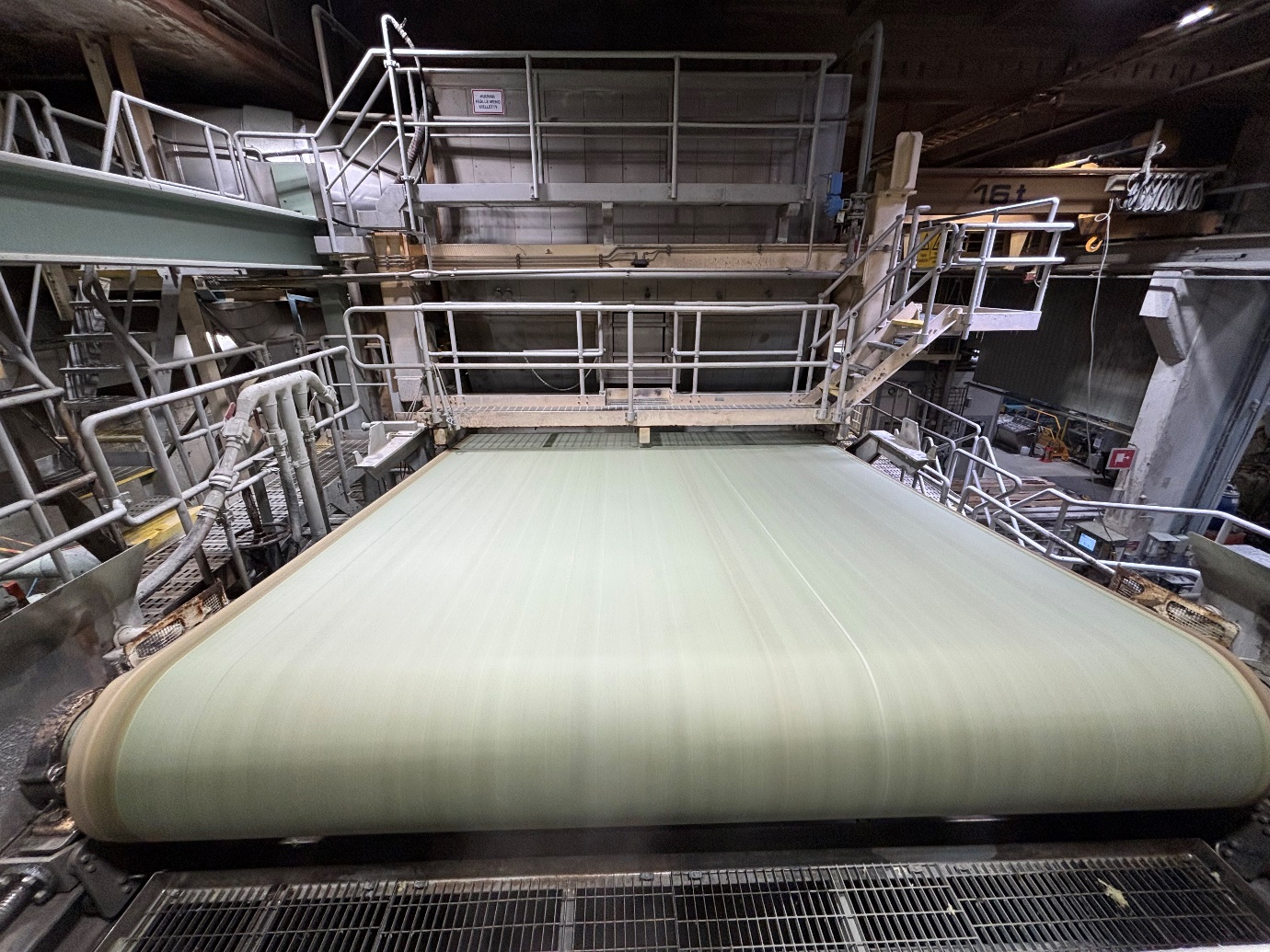

WET SECTION / PRESSING:

o Suction press :            89 kN/m

o Blind press :               89 kN/m



YANKEE CYLINDER:

o Diameter :                    4871,2 mm

o Width :                          4000 mm

o Max Pressure :             6,2 Bar



DRYING HOODS:

o Brand :                            Valmet

o Energy :                           Gas / max temp 500 °C

o Profiling :                         No

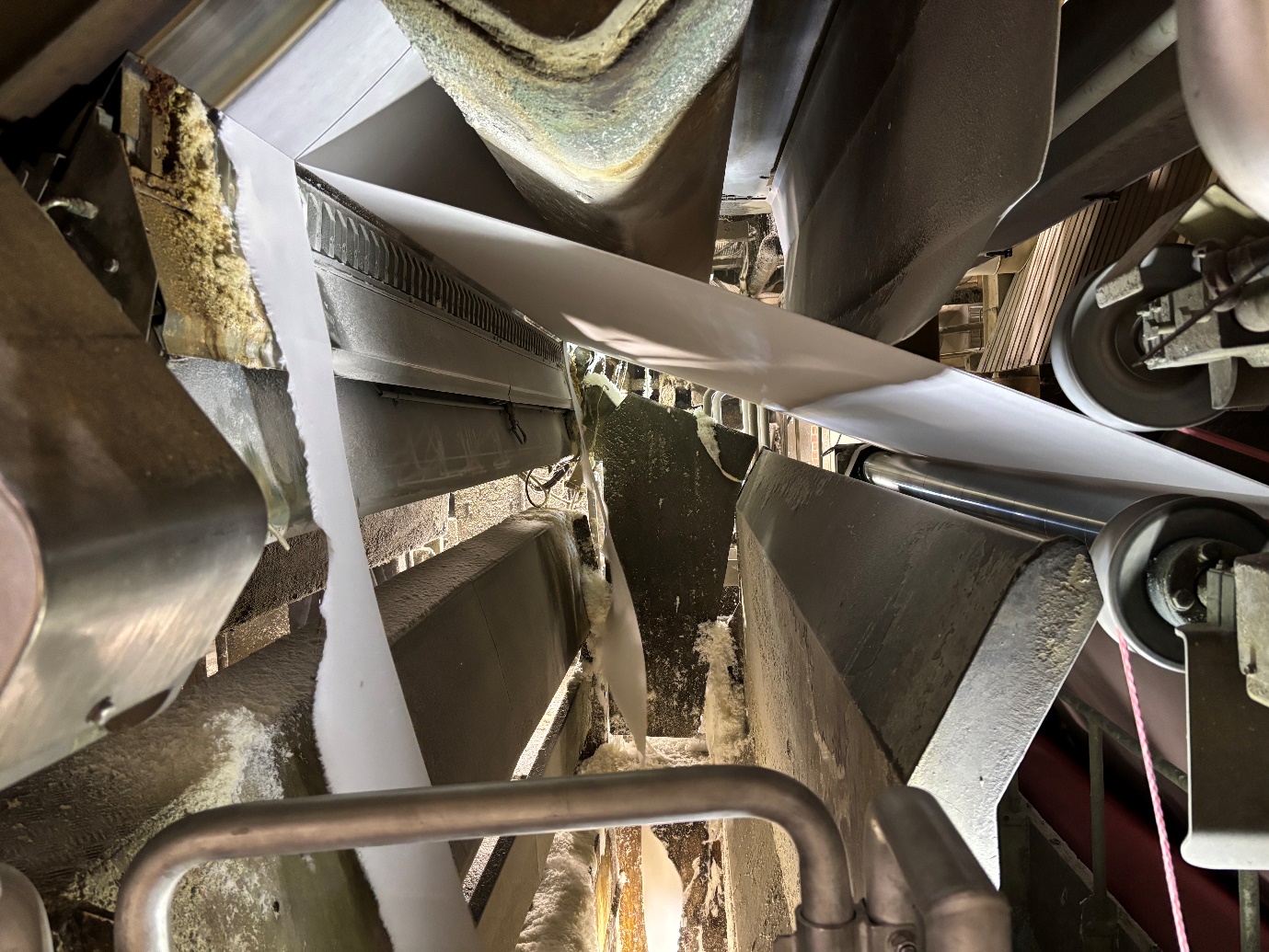

DOCTOR BLADE:

o No 1. Cutting

o No 2. Creping with oscillation

o No 3. Cleaning

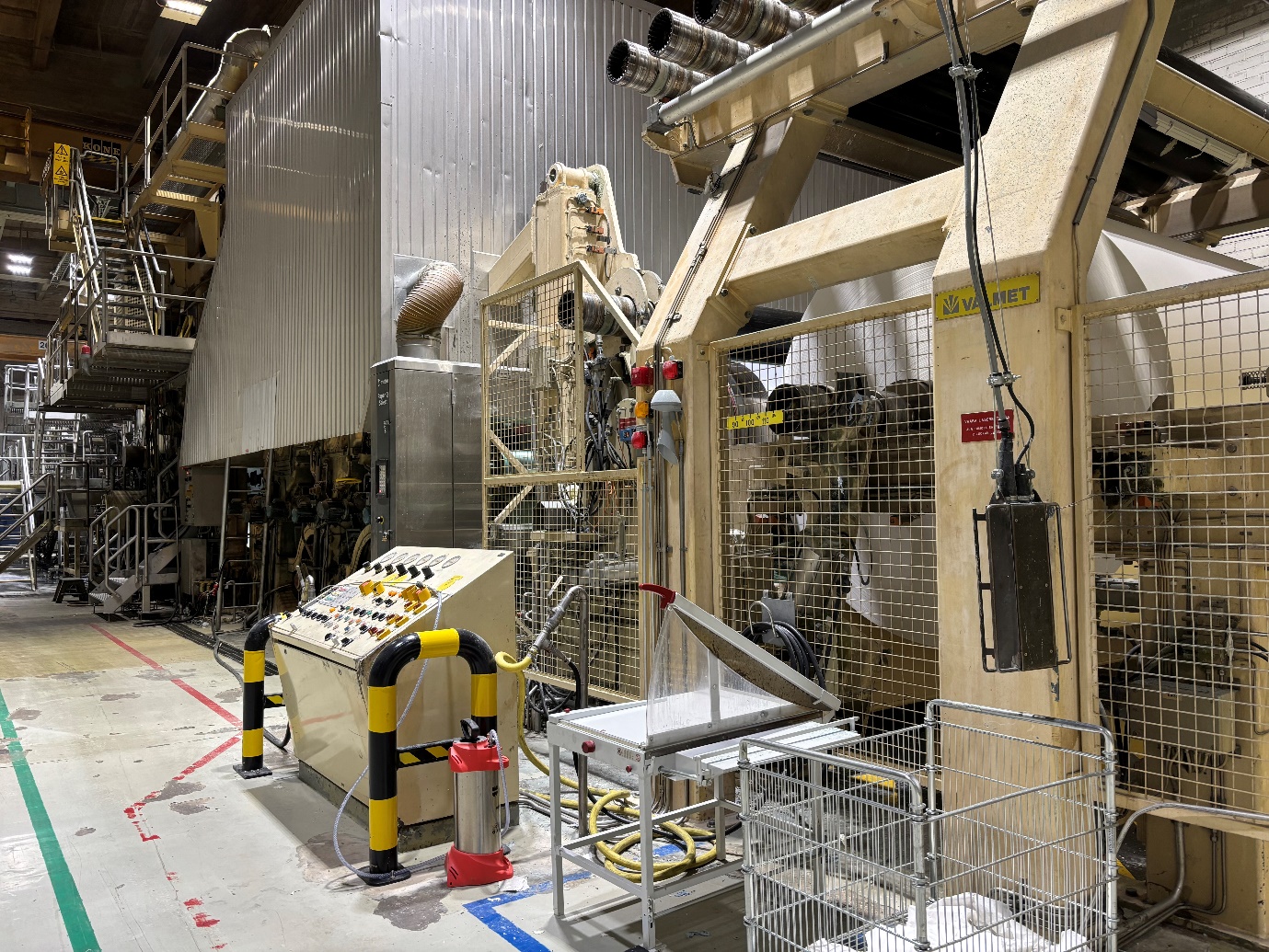

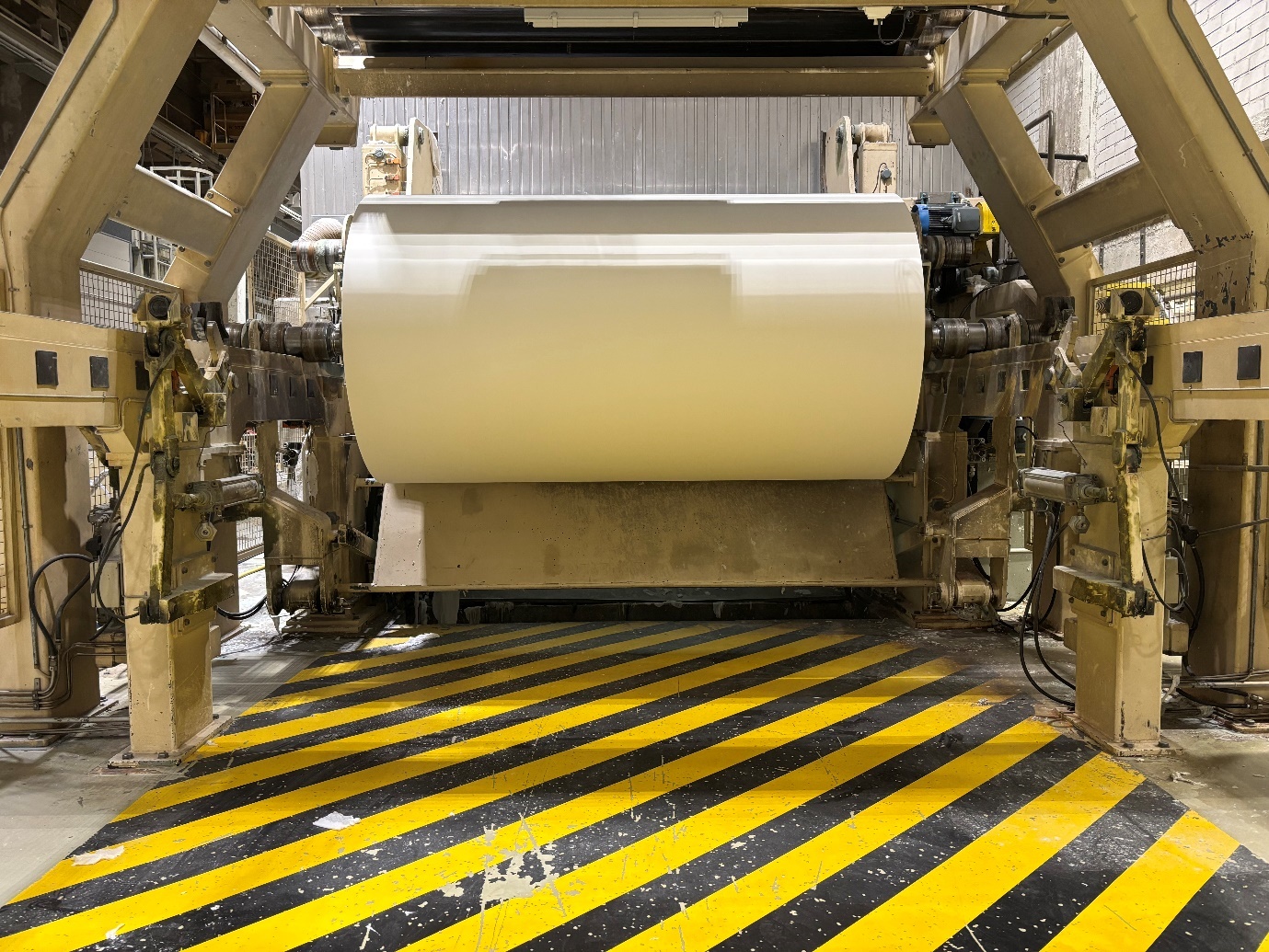

POPE REELER:

o Max. roll diameter :            3000 mm

o Max. Width :                        3460 mm



ACCESSORIES:

o Spare parts:

o Forming Roll (1 Roll)

o Wire Roll (1 Roll)

o Felt Roll (2 Rolls)

o Suction Press Roll (1 Roll)

o Blind Drill Roll (1 Roll)

o Spools :          10 pcs



APPROACH FLOW

o          Fan Pump (Scanpump JMW Z22-600/600/65)

Power : 634 Kw

Type : DC Motor

o          Vertical Screen (Valmet JS400)

Power : 90 kW

Type : AC Motor

o          Vacuum #1 (Nash 904)

Power : 250 kW

Type : AC Motor

o          Vacuum #2 (Runtech Turbo the Switch)

Power : 500 kW

Type : AC Motor

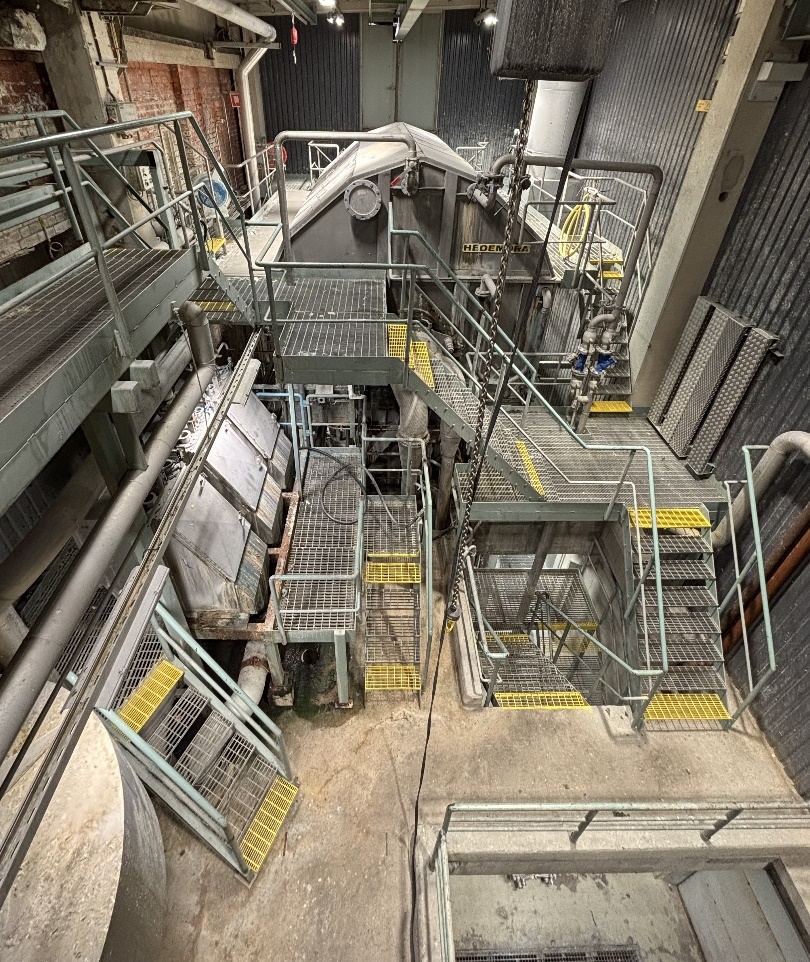

FIBER RECOVERY: Hedemora disc-filter (Capacity 8500 l/min), complete with accessories



Pulper #1 (Valmet (ex. Tampella) HD3650GK)

Capacity :          17 m3

Power :             200 kW

Note :   with Conveyor



Refiner #1 (Valmet Optifiner RF01)

Power : 315 kW



Refiner #2 (Valmet RF03)

Power :             400 kW



Deflaker #1 (Valmet JF110)

Power :             110 kW



Deflaker #2 (Valmet (ex. Jylhävaara) JF75)

Power :             75 kW



Deflaker #3 (Valmet (ex. Jylhävaara) JF75)

Power :             75 kW



ACCESORIES

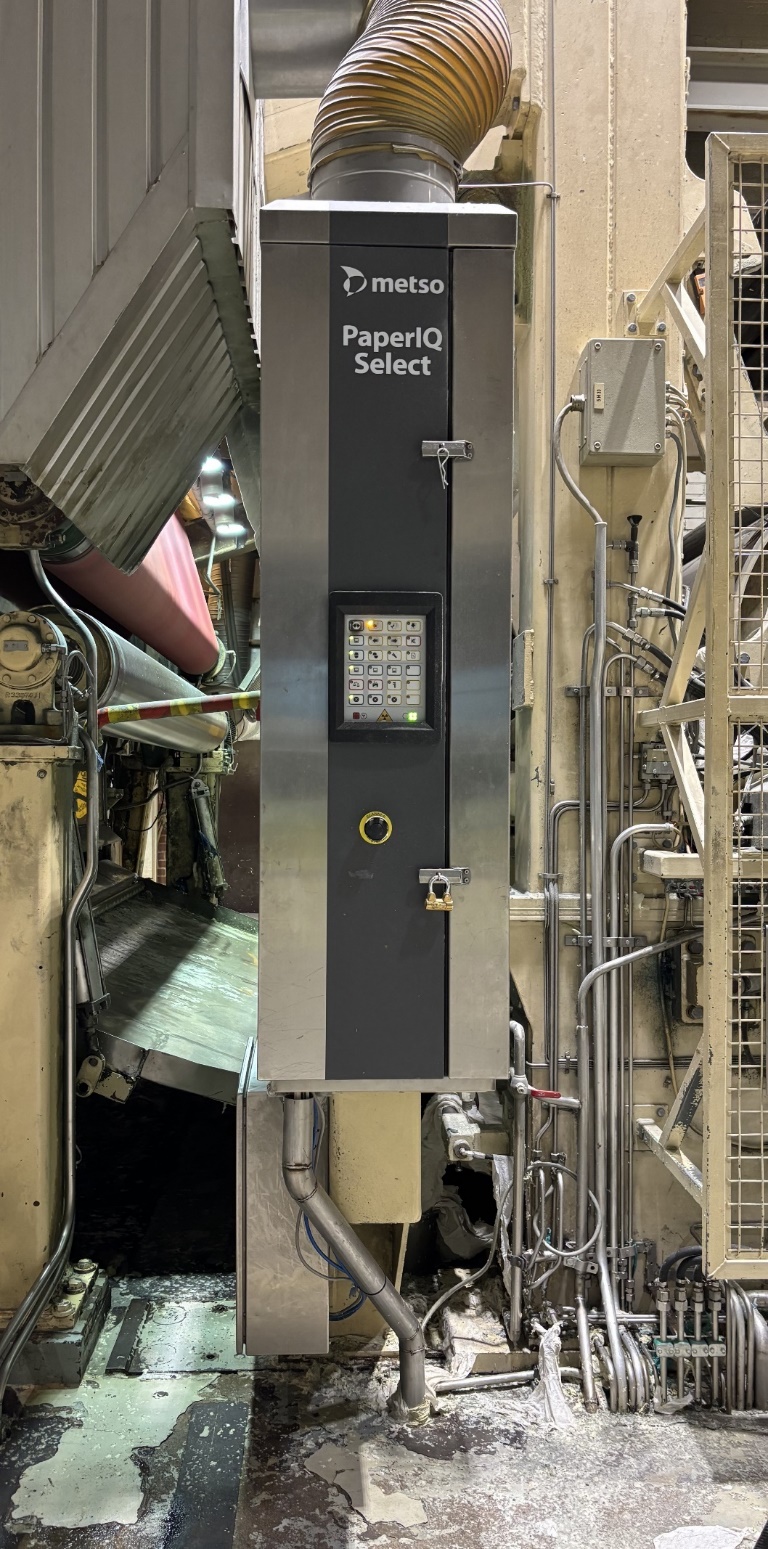

Include: Scanner (Valmet PaperIQ Select), pumps, tanks, agitators, instruments, valves

REWINDER

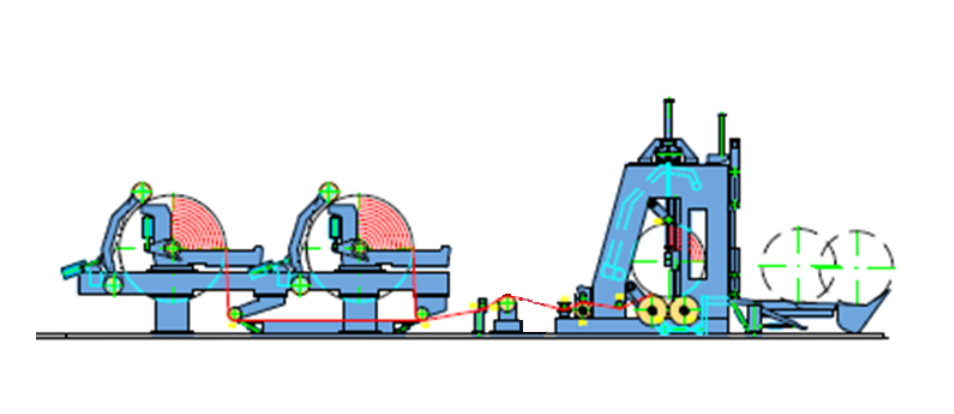

SLITTER-WINDER SW1

TECHNICAL DATA

Manufacturer :                     Jågenberg

Year of construction :            1988

Max. width :                         3460 mm

Max. reel diameter :             1750 mm

Production speed :                1200 m/min

Basic weight range :              17 – 50 gsm

Max plies :                            2

Drive type :                          Siemens AC Drive

Unwind Stand :                     2 stands

Max parent reel dia. :            2800 mm

Slitter :                                 8 pcs





NOTE ! Area resrictions : NO Europe and Turkey

Link to video : https://youtu.be/z3E-IIRBcwY

Link to video 2: https://youtu.be/qIxN0TqV70Q

Part of this tissue line is also De-inking line available in same location.

Details under this link:

https://varaoke.eu/products/stock-preparation-equipment/de-inking-plant-100-ton-day/
